Documentation for PIDX - Petroleum Industry Data Exchange
Definition Type: Element
Name: Discounts
Namespace: http://www.api.org/pidXML
Containing Schema: PIDXLib.xsd
Abstract
Documentation:
Structure containing the terms for a discount in relation to a transaction.

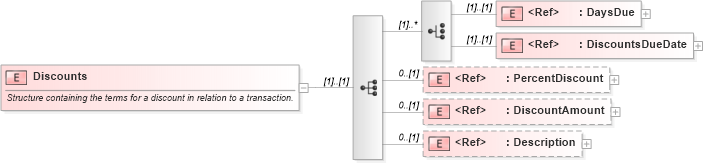

Collapse XSD Schema Diagram:
Drilldown into Description in schema pidxlib_xsd Drilldown into DiscountAmount in schema pidxlib_xsd Drilldown into PercentDiscount in schema pidxlib_xsd Drilldown into DiscountsDueDate in schema pidxlib_xsd Drilldown into DaysDue in schema pidxlib_xsdXSD Diagram of Discounts in schema pidxlib_xsd (PIDX - Petroleum Industry Data Exchange)
Collapse XSD Schema Code:
<element name="Discounts">
    <annotation>
        <documentation>Structure containing the terms for a discount in relation to a transaction.</documentation>
    </annotation>
    <complexType>
        <sequence>
            <choice maxOccurs="unbounded">
                <element ref="pidx:DaysDue" />
                <element ref="pidx:DiscountsDueDate" />
            </choice>
            <element ref="pidx:PercentDiscount" minOccurs="0" />
            <element ref="pidx:DiscountAmount" minOccurs="0" />
            <element ref="pidx:Description" minOccurs="0" />
        </sequence>
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DaysDue pidx:DaysDue (1) (1)
DiscountsDueDate pidx:DiscountsDueDate (1) (1)
PercentDiscount pidx:PercentDiscount 0 (1)
DiscountAmount pidx:DiscountAmount 0 (1)
Description pidx:Description 0 (1)
