Documentation for PIDX - Petroleum Industry Data Exchange
Definition Type: Element
Name: FieldTicketSummary
Namespace: http://www.api.org/pidXML
Containing Schema: FieldTicket.xsd
Abstract
Collapse XSD Schema Diagram:

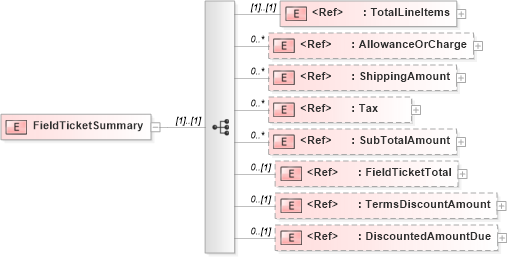

Drilldown into DiscountedAmountDue in schema pidxlib_xsd Drilldown into TermsDiscountAmount in schema pidxlib_xsd Drilldown into FieldTicketTotal in schema pidxlib_xsd Drilldown into SubTotalAmount in schema pidxlib_xsd Drilldown into Tax in schema pidxlib_xsd Drilldown into ShippingAmount in schema pidxlib_xsd Drilldown into AllowanceOrCharge in schema pidxlib_xsd Drilldown into TotalLineItems in schema pidxlib_xsdXSD Diagram of FieldTicketSummary in schema fieldticket_xsd (PIDX - Petroleum Industry Data Exchange)
Collapse XSD Schema Code:
<element name="FieldTicketSummary">
    <complexType>
        <sequence>
            <element ref="pidx:TotalLineItems" />
            <element ref="pidx:AllowanceOrCharge" minOccurs="0" maxOccurs="unbounded" />
            <element ref="pidx:ShippingAmount" minOccurs="0" maxOccurs="unbounded" />
            <element ref="pidx:Tax" minOccurs="0" maxOccurs="unbounded" />
            <element ref="pidx:SubTotalAmount" minOccurs="0" maxOccurs="unbounded" />
            <element ref="pidx:FieldTicketTotal" minOccurs="0" />
            <element ref="pidx:TermsDiscountAmount" minOccurs="0" />
            <element ref="pidx:DiscountedAmountDue" minOccurs="0" />
        </sequence>
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TotalLineItems pidx:TotalLineItems (1) (1)
AllowanceOrCharge pidx:AllowanceOrCharge 0 unbounded
ShippingAmount pidx:ShippingAmount 0 unbounded
Tax pidx:Tax 0 unbounded
SubTotalAmount pidx:SubTotalAmount 0 unbounded
FieldTicketTotal pidx:FieldTicketTotal 0 (1)
TermsDiscountAmount pidx:TermsDiscountAmount 0 (1)
DiscountedAmountDue pidx:DiscountedAmountDue 0 (1)
