Documentation for PIDX - Petroleum Industry Data Exchange
Definition Type: Element
Name: FinalDestinationLocationInformation
Namespace: http://www.api.org/pidXML
Containing Schema: PIDXLib.xsd
Abstract

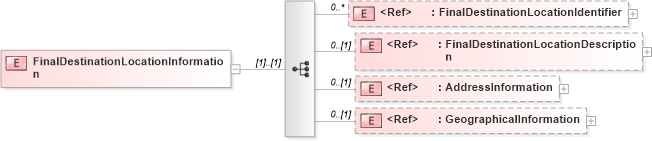

Collapse XSD Schema Diagram:
Drilldown into GeographicalInformation in schema pidxlib_xsd Drilldown into AddressInformation in schema pidxlib_xsd Drilldown into FinalDestinationLocationDescription in schema pidxlib_xsd Drilldown into FinalDestinationLocationIdentifier in schema pidxlib_xsdXSD Diagram of FinalDestinationLocationInformation in schema pidxlib_xsd (PIDX - Petroleum Industry Data Exchange)
Collapse XSD Schema Code:
<element name="FinalDestinationLocationInformation">
    <complexType>
        <sequence>
            <element ref="pidx:FinalDestinationLocationIdentifier" minOccurs="0" maxOccurs="unbounded" />
            <element ref="pidx:FinalDestinationLocationDescription" minOccurs="0" />
            <element ref="pidx:AddressInformation" minOccurs="0" />
            <element ref="pidx:GeographicalInformation" minOccurs="0" />
        </sequence>
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
FinalDestinationLocationIdentifier pidx:FinalDestinationLocationIdentifier 0 unbounded
FinalDestinationLocationDescription pidx:FinalDestinationLocationDescription 0 (1)
AddressInformation pidx:AddressInformation 0 (1)
GeographicalInformation pidx:GeographicalInformation 0 (1)
