Documentation for PIDX - Petroleum Industry Data Exchange
Definition Type: Element
Name: JobLocationInformation
Namespace: http://www.api.org/pidXML
Containing Schema: PIDXLib.xsd
Abstract

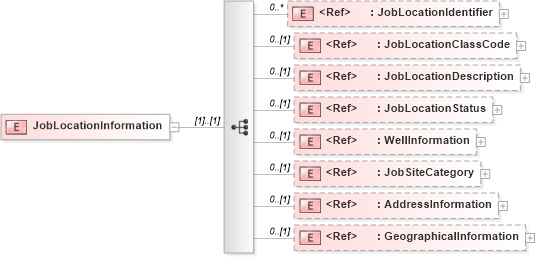

Collapse XSD Schema Diagram:
Drilldown into GeographicalInformation in schema pidxlib_xsd Drilldown into AddressInformation in schema pidxlib_xsd Drilldown into JobSiteCategory in schema pidxlib_xsd Drilldown into WellInformation in schema pidxlib_xsd Drilldown into JobLocationStatus in schema pidxlib_xsd Drilldown into JobLocationDescription in schema pidxlib_xsd Drilldown into JobLocationClassCode in schema pidxlib_xsd Drilldown into JobLocationIdentifier in schema pidxlib_xsdXSD Diagram of JobLocationInformation in schema pidxlib_xsd (PIDX - Petroleum Industry Data Exchange)
Collapse XSD Schema Code:
<element name="JobLocationInformation">
    <complexType>
        <sequence>
            <element ref="pidx:JobLocationIdentifier" minOccurs="0" maxOccurs="unbounded" />
            <element ref="pidx:JobLocationClassCode" minOccurs="0" />
            <element ref="pidx:JobLocationDescription" minOccurs="0" />
            <element ref="pidx:JobLocationStatus" minOccurs="0" />
            <element ref="pidx:WellInformation" minOccurs="0" />
            <element ref="pidx:JobSiteCategory" minOccurs="0" />
            <element ref="pidx:AddressInformation" minOccurs="0" />
            <element ref="pidx:GeographicalInformation" minOccurs="0" />
        </sequence>
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
JobLocationIdentifier pidx:JobLocationIdentifier 0 unbounded
JobLocationClassCode pidx:JobLocationClassCode 0 (1)
JobLocationDescription pidx:JobLocationDescription 0 (1)
JobLocationStatus pidx:JobLocationStatus 0 (1)
WellInformation pidx:WellInformation 0 (1)
JobSiteCategory pidx:JobSiteCategory 0 (1)
AddressInformation pidx:AddressInformation 0 (1)
GeographicalInformation pidx:GeographicalInformation 0 (1)
