Documentation for PIDX - Petroleum Industry Data Exchange
Definition Type: Element
Name: LineItemInformation
Namespace: http://www.api.org/pidXML
Containing Schema: PIDXLib.xsd
Abstract

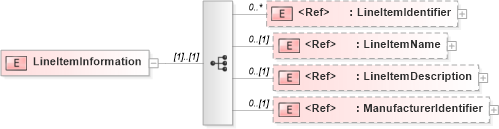

Collapse XSD Schema Diagram:
Drilldown into ManufacturerIdentifier in schema pidxlib_xsd Drilldown into LineItemDescription in schema pidxlib_xsd Drilldown into LineItemName in schema pidxlib_xsd Drilldown into LineItemIdentifier in schema pidxlib_xsdXSD Diagram of LineItemInformation in schema pidxlib_xsd (PIDX - Petroleum Industry Data Exchange)
Collapse XSD Schema Code:
<element name="LineItemInformation">
    <complexType>
        <sequence>
            <element ref="pidx:LineItemIdentifier" minOccurs="0" maxOccurs="unbounded" />
            <element ref="pidx:LineItemName" minOccurs="0" />
            <element ref="pidx:LineItemDescription" minOccurs="0" />
            <element ref="pidx:ManufacturerIdentifier" minOccurs="0" />
        </sequence>
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineItemIdentifier pidx:LineItemIdentifier 0 unbounded
LineItemName pidx:LineItemName 0 (1)
LineItemDescription pidx:LineItemDescription 0 (1)
ManufacturerIdentifier pidx:ManufacturerIdentifier 0 (1)
