Documentation for PIDX - Petroleum Industry Data Exchange
Definition Type: Element
Name: Location
Namespace: http://www.api.org/pidXML
Containing Schema: PIDXLib.xsd
Abstract

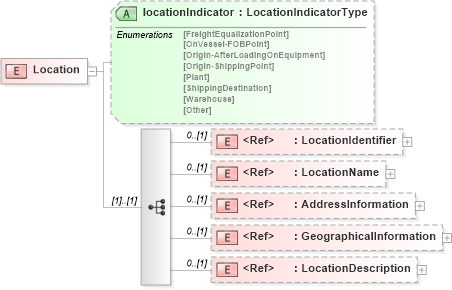

Collapse XSD Schema Diagram:
Drilldown into LocationDescription in schema pidxlib_xsd Drilldown into GeographicalInformation in schema pidxlib_xsd Drilldown into AddressInformation in schema pidxlib_xsd Drilldown into LocationName in schema pidxlib_xsd Drilldown into LocationIdentifier in schema pidxlib_xsd Drilldown into locationIndicator in schema pidxlib_xsdXSD Diagram of Location in schema pidxlib_xsd (PIDX - Petroleum Industry Data Exchange)
Collapse XSD Schema Code:
<element name="Location">
    <complexType>
        <sequence>
            <element ref="pidx:LocationIdentifier" minOccurs="0" />
            <element ref="pidx:LocationName" minOccurs="0" />
            <element ref="pidx:AddressInformation" minOccurs="0" />
            <element ref="pidx:GeographicalInformation" minOccurs="0" />
            <element ref="pidx:LocationDescription" minOccurs="0" />
        </sequence>
        <attribute name="locationIndicator" type="pidx:LocationIndicatorType" use="optional" />
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LocationIdentifier pidx:LocationIdentifier 0 (1)
LocationName pidx:LocationName 0 (1)
AddressInformation pidx:AddressInformation 0 (1)
GeographicalInformation pidx:GeographicalInformation 0 (1)
LocationDescription pidx:LocationDescription 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
locationIndicator pidx:locationIndicator Optional
