Documentation for PIDX - Petroleum Industry Data Exchange
Definition Type: Element
Name: OrderResponse
Namespace: http://www.api.org/pidXML
Containing Schema: OrderResponse.xsd
Abstract

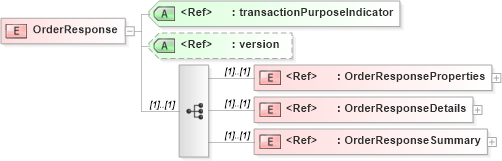

Collapse XSD Schema Diagram:
Drilldown into OrderResponseSummary in schema orderresponse_xsd Drilldown into OrderResponseDetails in schema orderresponse_xsd Drilldown into OrderResponseProperties in schema orderresponse_xsd Drilldown into version in schema pidxlib_xsd Drilldown into transactionPurposeIndicator in schema pidxlib_xsdXSD Diagram of OrderResponse in schema orderresponse_xsd (PIDX - Petroleum Industry Data Exchange)
Collapse XSD Schema Code:
<element name="OrderResponse">
    <complexType>
        <sequence>
            <element ref="pidx:OrderResponseProperties" />
            <element ref="pidx:OrderResponseDetails" />
            <element ref="pidx:OrderResponseSummary" />
        </sequence>
        <attribute ref="pidx:transactionPurposeIndicator" use="required" />
        <attribute ref="pidx:version" use="optional" />
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
OrderResponseProperties pidx:OrderResponseProperties (1) (1)
OrderResponseDetails pidx:OrderResponseDetails (1) (1)
OrderResponseSummary pidx:OrderResponseSummary (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
transactionPurposeIndicator pidx:transactionPurposeIndicator Required
version pidx:version Optional
