Documentation for PIDX - Petroleum Industry Data Exchange
Definition Type: Element
Name: OrderStatusResponse
Namespace: http://www.api.org/pidXML
Containing Schema: OrderStatusResponse.xsd
Abstract

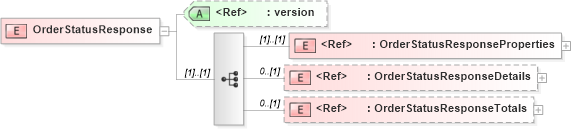

Collapse XSD Schema Diagram:
Drilldown into OrderStatusResponseTotals in schema orderstatusresponse_xsd Drilldown into OrderStatusResponseDetails in schema orderstatusresponse_xsd Drilldown into OrderStatusResponseProperties in schema orderstatusresponse_xsd Drilldown into version in schema pidxlib_xsdXSD Diagram of OrderStatusResponse in schema orderstatusresponse_xsd (PIDX - Petroleum Industry Data Exchange)
Collapse XSD Schema Code:
<element name="OrderStatusResponse">
    <complexType>
        <sequence>
            <element ref="pidx:OrderStatusResponseProperties" />
            <element ref="pidx:OrderStatusResponseDetails" minOccurs="0" />
            <element ref="pidx:OrderStatusResponseTotals" minOccurs="0" />
        </sequence>
        <attribute ref="pidx:version" use="optional" />
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
OrderStatusResponseProperties pidx:OrderStatusResponseProperties (1) (1)
OrderStatusResponseDetails pidx:OrderStatusResponseDetails 0 (1)
OrderStatusResponseTotals pidx:OrderStatusResponseTotals 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
version pidx:version Optional
