Documentation for PIDX - Petroleum Industry Data Exchange
Definition Type: Element
Name: PipelineNominationResponse
Namespace: http://www.api.org/pidXML
Containing Schema: PipelineNominationResponse.xsd
Abstract

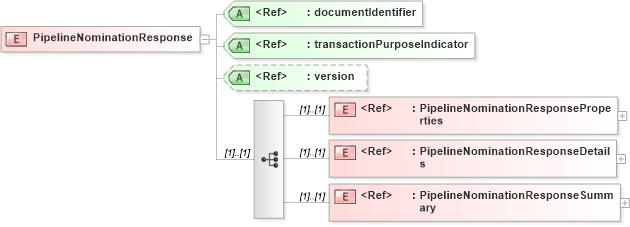

Collapse XSD Schema Diagram:
Drilldown into PipelineNominationResponseSummary in schema pipelinenominationresponse_xsd Drilldown into PipelineNominationResponseDetails in schema pipelinenominationresponse_xsd Drilldown into PipelineNominationResponseProperties in schema pipelinenominationresponse_xsd Drilldown into version in schema pidxlib_xsd Drilldown into transactionPurposeIndicator in schema pidxlib_xsd Drilldown into documentIdentifier in schema pidxlib_xsdXSD Diagram of PipelineNominationResponse in schema pipelinenominationresponse_xsd (PIDX - Petroleum Industry Data Exchange)
Collapse XSD Schema Code:
<element name="PipelineNominationResponse">
    <complexType>
        <sequence>
            <element ref="pidx:PipelineNominationResponseProperties" />
            <element ref="pidx:PipelineNominationResponseDetails" />
            <element ref="pidx:PipelineNominationResponseSummary" />
        </sequence>
        <attribute ref="pidx:documentIdentifier" use="required" />
        <attribute ref="pidx:transactionPurposeIndicator" use="required" />
        <attribute ref="pidx:version" use="optional" />
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PipelineNominationResponseProperties pidx:PipelineNominationResponseProperties (1) (1)
PipelineNominationResponseDetails pidx:PipelineNominationResponseDetails (1) (1)
PipelineNominationResponseSummary pidx:PipelineNominationResponseSummary (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
documentIdentifier pidx:documentIdentifier Required
transactionPurposeIndicator pidx:transactionPurposeIndicator Required
version pidx:version Optional
