Documentation for PIDX - Petroleum Industry Data Exchange
Definition Type: Element
Name: PriceBasis
Namespace: http://www.api.org/pidXML
Containing Schema: PIDXLib.xsd
Abstract
Documentation:
The rules upon which pricing is based in a transaction.

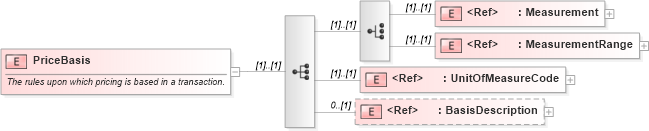

Collapse XSD Schema Diagram:
Drilldown into BasisDescription in schema pidxlib_xsd Drilldown into UnitOfMeasureCode in schema pidxlib_xsd Drilldown into MeasurementRange in schema pidxlib_xsd Drilldown into Measurement in schema pidxlib_xsdXSD Diagram of PriceBasis in schema pidxlib_xsd (PIDX - Petroleum Industry Data Exchange)
Collapse XSD Schema Code:
<element name="PriceBasis">
    <annotation>
        <documentation>The rules upon which pricing is based in a transaction.</documentation>
    </annotation>
    <complexType>
        <sequence>
            <choice>
                <element ref="pidx:Measurement" />
                <element ref="pidx:MeasurementRange" />
            </choice>
            <element ref="pidx:UnitOfMeasureCode" />
            <element ref="pidx:BasisDescription" minOccurs="0" />
        </sequence>
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Measurement pidx:Measurement (1) (1)
MeasurementRange pidx:MeasurementRange (1) (1)
UnitOfMeasureCode pidx:UnitOfMeasureCode (1) (1)
BasisDescription pidx:BasisDescription 0 (1)
