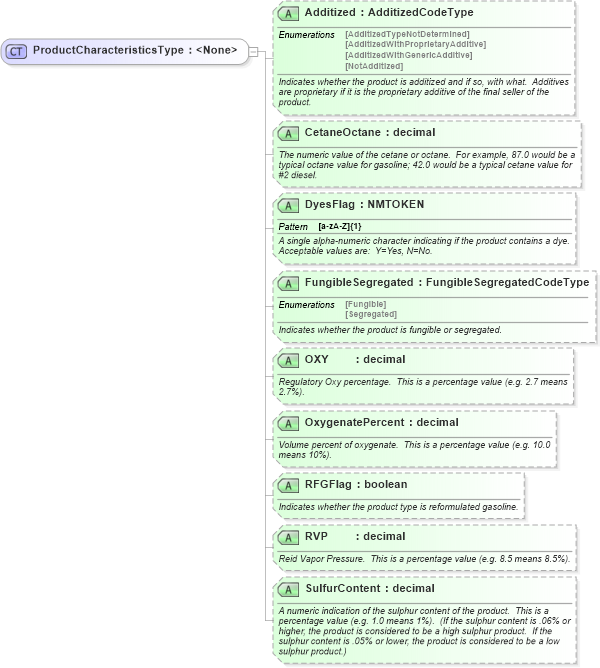

<complexType name="ProductCharacteristicsType">
    <attribute name="Additized" type="pidx:AdditizedCodeType">
        <annotation>
            <documentation>Indicates whether the product is additized and if so, with what.  Additives are proprietary if it is the proprietary additive of the final seller of the product.</documentation>
        </annotation>
    </attribute>
    <attribute name="CetaneOctane" type="decimal">
        <annotation>
            <documentation>The numeric value of the cetane or octane.  For example, 87.0 would be a typical octane value for gasoline; 42.0 would be a typical cetane value for #2 diesel.</documentation>
        </annotation>
    </attribute>
    <attribute name="DyesFlag">
        <annotation>
            <documentation>A single alpha-numeric character indicating if the product contains a dye.  Acceptable values are:  Y=Yes, N=No.</documentation>
        </annotation>
        <simpleType>
            <restriction base="NMTOKEN">
                <pattern value="[a-zA-Z]{1}" />
            </restriction>
        </simpleType>
    </attribute>
    <attribute name="FungibleSegregated" type="pidx:FungibleSegregatedCodeType">
        <annotation>
            <documentation>Indicates whether the product is fungible or segregated.</documentation>
        </annotation>
    </attribute>
    <attribute name="OXY" type="decimal">
        <annotation>
            <documentation>Regulatory Oxy percentage.  This is a percentage value (e.g. 2.7 means 2.7%).</documentation>
        </annotation>
    </attribute>
    <attribute name="OxygenatePercent" type="decimal">
        <annotation>
            <documentation>Volume percent of oxygenate.  This is a percentage value (e.g. 10.0 means 10%).</documentation>
        </annotation>
    </attribute>
    <attribute name="RFGFlag" type="boolean">
        <annotation>
            <documentation>Indicates whether the product type is reformulated gasoline.</documentation>
        </annotation>
    </attribute>
    <attribute name="RVP" type="decimal">
        <annotation>
            <documentation>Reid Vapor Pressure.  This is a percentage value (e.g. 8.5 means 8.5%).</documentation>
        </annotation>
    </attribute>
    <attribute name="SulfurContent" type="decimal">
        <annotation>
            <documentation>A numeric indication of the sulphur content of the product.  This is a percentage value (e.g. 1.0 means 1%).  (If the sulphur content is .06% or higher, the product is considered to be a high sulphur product.  If the sulphur content is .05% or lower, the product is considered to be a low sulphur product.)</documentation>
        </annotation>
    </attribute>
</complexType>
