Documentation for PIDX - Petroleum Industry Data Exchange
Definition Type: Element
Name: ProductSubLineItems
Namespace: http://www.api.org/pidXML
Containing Schema: PIDXLib.xsd
Abstract
Documentation:
Children of product line items to add additional details to product line items.

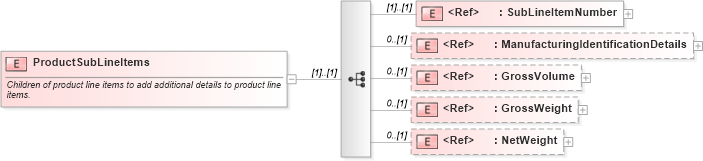

Collapse XSD Schema Diagram:
Drilldown into NetWeight in schema pidxlib_xsd Drilldown into GrossWeight in schema pidxlib_xsd Drilldown into GrossVolume in schema pidxlib_xsd Drilldown into ManufacturingIdentificationDetails in schema pidxlib_xsd Drilldown into SubLineItemNumber in schema pidxlib_xsdXSD Diagram of ProductSubLineItems in schema pidxlib_xsd (PIDX - Petroleum Industry Data Exchange)
Collapse XSD Schema Code:
<element name="ProductSubLineItems">
    <annotation>
        <documentation>Children of product line items to add additional details to product line items.</documentation>
    </annotation>
    <complexType>
        <sequence>
            <element ref="pidx:SubLineItemNumber" />
            <element ref="pidx:ManufacturingIdentificationDetails" minOccurs="0" />
            <element ref="pidx:GrossVolume" minOccurs="0" />
            <element ref="pidx:GrossWeight" minOccurs="0" />
            <element ref="pidx:NetWeight" minOccurs="0" />
        </sequence>
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SubLineItemNumber pidx:SubLineItemNumber (1) (1)
ManufacturingIdentificationDetails pidx:ManufacturingIdentificationDetails 0 (1)
GrossVolume pidx:GrossVolume 0 (1)
GrossWeight pidx:GrossWeight 0 (1)
NetWeight pidx:NetWeight 0 (1)
