Documentation for PIDX - Petroleum Industry Data Exchange
Definition Type: Element
Name: PurchaseOrderInformation
Namespace: http://www.api.org/pidXML
Containing Schema: PIDXLib.xsd
Abstract

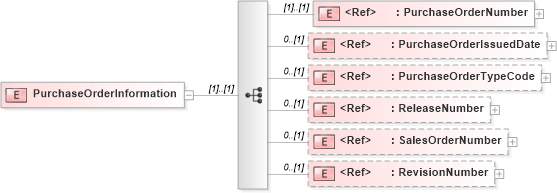

Collapse XSD Schema Diagram:
Drilldown into RevisionNumber in schema pidxlib_xsd Drilldown into SalesOrderNumber in schema pidxlib_xsd Drilldown into ReleaseNumber in schema pidxlib_xsd Drilldown into PurchaseOrderTypeCode in schema pidxlib_xsd Drilldown into PurchaseOrderIssuedDate in schema pidxlib_xsd Drilldown into PurchaseOrderNumber in schema pidxlib_xsdXSD Diagram of PurchaseOrderInformation in schema pidxlib_xsd (PIDX - Petroleum Industry Data Exchange)
Collapse XSD Schema Code:
<element name="PurchaseOrderInformation">
    <complexType>
        <sequence>
            <element ref="pidx:PurchaseOrderNumber" />
            <element ref="pidx:PurchaseOrderIssuedDate" minOccurs="0" />
            <element ref="pidx:PurchaseOrderTypeCode" minOccurs="0" />
            <element ref="pidx:ReleaseNumber" minOccurs="0" />
            <element ref="pidx:SalesOrderNumber" minOccurs="0" />
            <element ref="pidx:RevisionNumber" minOccurs="0" />
        </sequence>
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PurchaseOrderNumber pidx:PurchaseOrderNumber (1) (1)
PurchaseOrderIssuedDate pidx:PurchaseOrderIssuedDate 0 (1)
PurchaseOrderTypeCode pidx:PurchaseOrderTypeCode 0 (1)
ReleaseNumber pidx:ReleaseNumber 0 (1)
SalesOrderNumber pidx:SalesOrderNumber 0 (1)
RevisionNumber pidx:RevisionNumber 0 (1)
