Documentation for PIDX - Petroleum Industry Data Exchange
Definition Type: Element
Name: Quote
Namespace: http://www.api.org/pidXML
Containing Schema: Quote.xsd
Abstract

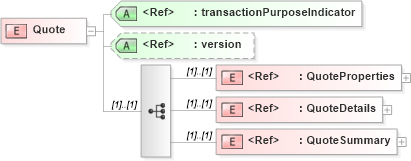

Collapse XSD Schema Diagram:
Drilldown into QuoteSummary in schema quote_xsd Drilldown into QuoteDetails in schema quote_xsd Drilldown into QuoteProperties in schema quote_xsd Drilldown into version in schema pidxlib_xsd Drilldown into transactionPurposeIndicator in schema pidxlib_xsdXSD Diagram of Quote in schema quote_xsd (PIDX - Petroleum Industry Data Exchange)
Collapse XSD Schema Code:
<element name="Quote">
    <complexType>
        <sequence>
            <element ref="pidx:QuoteProperties" />
            <element ref="pidx:QuoteDetails" />
            <element ref="pidx:QuoteSummary" />
        </sequence>
        <attribute ref="pidx:transactionPurposeIndicator" use="required" />
        <attribute ref="pidx:version" use="optional" />
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
QuoteProperties pidx:QuoteProperties (1) (1)
QuoteDetails pidx:QuoteDetails (1) (1)
QuoteSummary pidx:QuoteSummary (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
transactionPurposeIndicator pidx:transactionPurposeIndicator Required
version pidx:version Optional
