Documentation for PIDX - Petroleum Industry Data Exchange
Definition Type: Element
Name: ScheduleDateTimeRange
Namespace: http://www.api.org/pidXML
Type: pidx:DateTimeRangeType
Containing Schema: PIDXLib.xsd
Abstract
Documentation:
The date/time range between which the product is scheduled to be delivered.

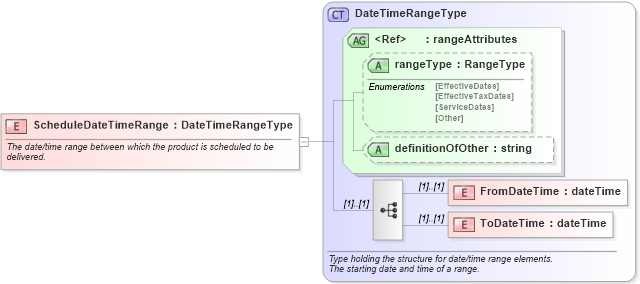

Collapse XSD Schema Diagram:
Drilldown into ToDateTime in schema pidxlib_xsd Drilldown into FromDateTime in schema pidxlib_xsd Drilldown into definitionOfOther in schema pidxlib_xsd Drilldown into rangeType in schema pidxlib_xsd Drilldown into rangeAttributes in schema pidxlib_xsd Drilldown into DateTimeRangeType in schema pidxlib_xsdXSD Diagram of ScheduleDateTimeRange in schema pidxlib_xsd (PIDX - Petroleum Industry Data Exchange)
Collapse XSD Schema Code:
<element name="ScheduleDateTimeRange" type="pidx:DateTimeRangeType">
    <annotation>
        <documentation>The date/time range between which the product is scheduled to be delivered.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
FromDateTime pidx:FromDateTime (1) (1)
ToDateTime pidx:ToDateTime (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
rangeType pidx:rangeType (Optional)
definitionOfOther pidx:definitionOfOther (Optional)
Collapse Derivation Tree:
