Documentation for PIDX - Petroleum Industry Data Exchange
Definition Type: Element
Name: TankCloseMeasures
Namespace: http://www.api.org/pidXML
Containing Schema: PIDXLib.xsd
Abstract

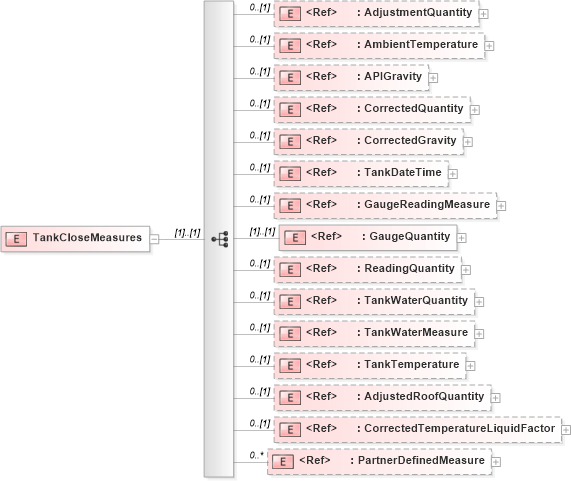

Collapse XSD Schema Diagram:
Drilldown into PartnerDefinedMeasure in schema pidxlib_xsd Drilldown into CorrectedTemperatureLiquidFactor in schema pidxlib_xsd Drilldown into AdjustedRoofQuantity in schema pidxlib_xsd Drilldown into TankTemperature in schema pidxlib_xsd Drilldown into TankWaterMeasure in schema pidxlib_xsd Drilldown into TankWaterQuantity in schema pidxlib_xsd Drilldown into ReadingQuantity in schema pidxlib_xsd Drilldown into GaugeQuantity in schema pidxlib_xsd Drilldown into GaugeReadingMeasure in schema pidxlib_xsd Drilldown into TankDateTime in schema pidxlib_xsd Drilldown into CorrectedGravity in schema pidxlib_xsd Drilldown into CorrectedQuantity in schema pidxlib_xsd Drilldown into APIGravity in schema pidxlib_xsd Drilldown into AmbientTemperature in schema pidxlib_xsd Drilldown into AdjustmentQuantity in schema pidxlib_xsdXSD Diagram of TankCloseMeasures in schema pidxlib_xsd (PIDX - Petroleum Industry Data Exchange)
Collapse XSD Schema Code:
<element name="TankCloseMeasures">
    <complexType>
        <sequence>
            <element ref="pidx:AdjustmentQuantity" minOccurs="0" />
            <element ref="pidx:AmbientTemperature" minOccurs="0" />
            <element ref="pidx:APIGravity" minOccurs="0" />
            <element ref="pidx:CorrectedQuantity" minOccurs="0" />
            <element ref="pidx:CorrectedGravity" minOccurs="0" />
            <element ref="pidx:TankDateTime" minOccurs="0" />
            <element ref="pidx:GaugeReadingMeasure" minOccurs="0" />
            <element ref="pidx:GaugeQuantity" />
            <element ref="pidx:ReadingQuantity" minOccurs="0" />
            <element ref="pidx:TankWaterQuantity" minOccurs="0" />
            <element ref="pidx:TankWaterMeasure" minOccurs="0" />
            <element ref="pidx:TankTemperature" minOccurs="0" />
            <element ref="pidx:AdjustedRoofQuantity" minOccurs="0" />
            <element ref="pidx:CorrectedTemperatureLiquidFactor" minOccurs="0" />
            <element ref="pidx:PartnerDefinedMeasure" minOccurs="0" maxOccurs="unbounded" />
        </sequence>
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AdjustmentQuantity pidx:AdjustmentQuantity 0 (1)
AmbientTemperature pidx:AmbientTemperature 0 (1)
APIGravity pidx:APIGravity 0 (1)
CorrectedQuantity pidx:CorrectedQuantity 0 (1)
CorrectedGravity pidx:CorrectedGravity 0 (1)
TankDateTime pidx:TankDateTime 0 (1)
GaugeReadingMeasure pidx:GaugeReadingMeasure 0 (1)
GaugeQuantity pidx:GaugeQuantity (1) (1)
ReadingQuantity pidx:ReadingQuantity 0 (1)
TankWaterQuantity pidx:TankWaterQuantity 0 (1)
TankWaterMeasure pidx:TankWaterMeasure 0 (1)
TankTemperature pidx:TankTemperature 0 (1)
AdjustedRoofQuantity pidx:AdjustedRoofQuantity 0 (1)
CorrectedTemperatureLiquidFactor pidx:CorrectedTemperatureLiquidFactor 0 (1)
PartnerDefinedMeasure pidx:PartnerDefinedMeasure 0 unbounded
