Documentation for PIDX - Petroleum Industry Data Exchange
Definition Type: Element
Name: VesselMeasures
Namespace: http://www.api.org/pidXML
Containing Schema: PIDXLib.xsd
Abstract

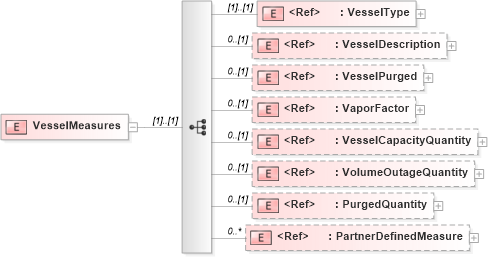

Collapse XSD Schema Diagram:
Drilldown into PartnerDefinedMeasure in schema pidxlib_xsd Drilldown into PurgedQuantity in schema pidxlib_xsd Drilldown into VolumeOutageQuantity in schema pidxlib_xsd Drilldown into VesselCapacityQuantity in schema pidxlib_xsd Drilldown into VaporFactor in schema pidxlib_xsd Drilldown into VesselPurged in schema pidxlib_xsd Drilldown into VesselDescription in schema pidxlib_xsd Drilldown into VesselType in schema pidxlib_xsdXSD Diagram of VesselMeasures in schema pidxlib_xsd (PIDX - Petroleum Industry Data Exchange)
Collapse XSD Schema Code:
<element name="VesselMeasures">
    <complexType>
        <sequence>
            <element ref="pidx:VesselType" />
            <element ref="pidx:VesselDescription" minOccurs="0" />
            <element ref="pidx:VesselPurged" minOccurs="0" />
            <element ref="pidx:VaporFactor" minOccurs="0" />
            <element ref="pidx:VesselCapacityQuantity" minOccurs="0" />
            <element ref="pidx:VolumeOutageQuantity" minOccurs="0" />
            <element ref="pidx:PurgedQuantity" minOccurs="0" />
            <element ref="pidx:PartnerDefinedMeasure" minOccurs="0" maxOccurs="unbounded" />
        </sequence>
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
VesselType pidx:VesselType (1) (1)
VesselDescription pidx:VesselDescription 0 (1)
VesselPurged pidx:VesselPurged 0 (1)
VaporFactor pidx:VaporFactor 0 (1)
VesselCapacityQuantity pidx:VesselCapacityQuantity 0 (1)
VolumeOutageQuantity pidx:VolumeOutageQuantity 0 (1)
PurgedQuantity pidx:PurgedQuantity 0 (1)
PartnerDefinedMeasure pidx:PartnerDefinedMeasure 0 unbounded
