Documentation for Prism - IDEAlliance Specification publishing
Definition Type: Element
Name: ruby
Namespace: http://www.w3.org/1999/xhtml
Containing Schema: pam-xhtml.xsd
Abstract

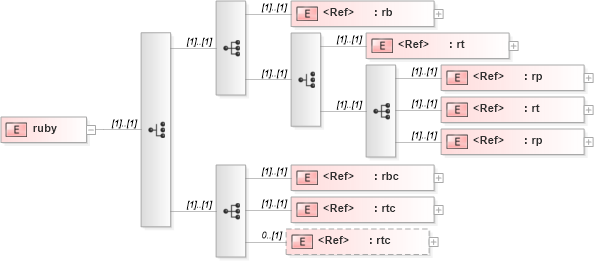

Collapse XSD Schema Diagram:
Drilldown into rtc in schema pam-xhtml_xsd Drilldown into rtc in schema pam-xhtml_xsd Drilldown into rbc in schema pam-xhtml_xsd Drilldown into rp in schema pam-xhtml_xsd Drilldown into rt in schema pam-xhtml_xsd Drilldown into rp in schema pam-xhtml_xsd Drilldown into rt in schema pam-xhtml_xsd Drilldown into rb in schema pam-xhtml_xsdXSD Diagram of ruby in schema pam-xhtml_xsd (Prism - IDEAlliance Specification publishing)
Collapse XSD Schema Code:
<xs:element name="ruby">
    <xs:complexType>
        <xs:choice>
            <xs:sequence>
                <xs:element ref="xhtml:rb" />
                <xs:choice>
                    <xs:element ref="xhtml:rt" />
                    <xs:sequence>
                        <xs:element ref="xhtml:rp" />
                        <xs:element ref="xhtml:rt" />
                        <xs:element ref="xhtml:rp" />
                    </xs:sequence>
                </xs:choice>
            </xs:sequence>
            <xs:sequence>
                <xs:element ref="xhtml:rbc" />
                <xs:element ref="xhtml:rtc" />
                <xs:element ref="xhtml:rtc" minOccurs="0" />
            </xs:sequence>
        </xs:choice>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
rb xhtml:rb (1) (1)
rt xhtml:rt (1) (1)
rp xhtml:rp (1) (1)
rt xhtml:rt (1) (1)
rp xhtml:rp (1) (1)
rbc xhtml:rbc (1) (1)
rtc xhtml:rtc (1) (1)
rtc xhtml:rtc 0 (1)
