Documentation for W3C XML Schema Definition Language
Definition Type: Element
Name: documentation
Namespace: http://www.w3.org/2001/XMLSchema
Containing Schema: XMLSchema.xsd
Abstract

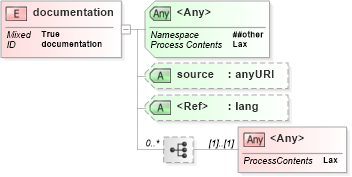

Collapse XSD Schema Diagram:
Drilldown into lang in schema xml_xsd Drilldown into source in schema xmlschema_xsdXSD Diagram of documentation in schema xmlschema_xsd (W3C XML Schema Definition Language)
Collapse XSD Schema Code:
<xs:element name="documentation" id="documentation">
    <xs:annotation>
        <xs:documentation source="http://www.w3.org/TR/xmlschema-1/#element-documentation" />
    </xs:annotation>
    <xs:complexType mixed="true">
        <xs:sequence minOccurs="0" maxOccurs="unbounded">
            <xs:any processContents="lax" />
        </xs:sequence>
        <xs:attribute name="source" type="xs:anyURI" />
        <xs:attribute ref="xml:lang" />
        <xs:anyAttribute namespace="##other" processContents="lax" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
<xs:any> (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
source xs:source (Optional)
lang nsA:lang (Optional)
<anyAttribute> Allowed namespace: '##other'
