Documentation for W3C XML Schema Definition Language
Definition Type: Element
Name: list
Namespace: http://www.w3.org/2001/XMLSchema
Type: xs:annotated
Containing Schema: XMLSchema.xsd
Abstract
Collapse XSD Schema Diagram:

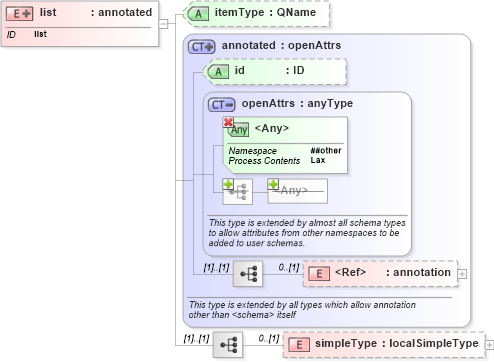

Drilldown into simpleType in schema xmlschema_xsd Drilldown into annotation in schema xmlschema_xsd Drilldown into openAttrs in schema xmlschema_xsd Drilldown into id in schema xmlschema_xsd Drilldown into annotated in schema xmlschema_xsd Drilldown into itemType in schema xmlschema_xsdXSD Diagram of list in schema xmlschema_xsd (W3C XML Schema Definition Language)
Collapse XSD Schema Code:
<xs:element name="list" id="list">
    <xs:complexType>
        <xs:annotation>
            <xs:documentation source="http://www.w3.org/TR/xmlschema-2/#element-list">
          itemType attribute and simpleType child are mutually
          exclusive, but one or other is required
        </xs:documentation>
        </xs:annotation>
        <xs:complexContent>
            <xs:extension base="xs:annotated">
                <xs:sequence>
                    <xs:element name="simpleType" type="xs:localSimpleType" minOccurs="0" />
                </xs:sequence>
                <xs:attribute name="itemType" type="xs:QName" use="optional" />
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
annotation xs:annotation 0 (1)
simpleType xs:simpleType 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id xs:id (Optional)
itemType xs:itemType Optional
<anyAttribute>
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
