Documentation for W3C XML Schema Definition Language
Definition Type: Element
Name: minInclusive
Namespace: http://www.w3.org/2001/XMLSchema
Type: xs:facet
Containing Schema: XMLSchema.xsd
Abstract

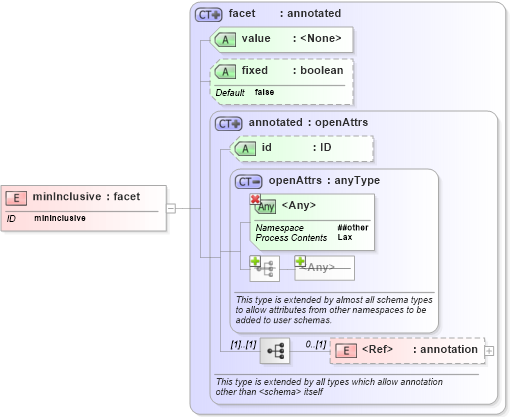

Collapse XSD Schema Diagram:
Drilldown into annotation in schema xmlschema_xsd Drilldown into openAttrs in schema xmlschema_xsd Drilldown into id in schema xmlschema_xsd Drilldown into annotated in schema xmlschema_xsd Drilldown into fixed in schema xmlschema_xsd Drilldown into value in schema xmlschema_xsd Drilldown into facet in schema xmlschema_xsdXSD Diagram of minInclusive in schema xmlschema_xsd (W3C XML Schema Definition Language)
Collapse XSD Schema Code:
<xs:element name="minInclusive" id="minInclusive" type="xs:facet">
    <xs:annotation>
        <xs:documentation source="http://www.w3.org/TR/xmlschema-2/#element-minInclusive" />
    </xs:annotation>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
annotation xs:annotation 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id xs:id (Optional)
value xs:value Required
fixed xs:fixed false Optional
<anyAttribute>
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
