Documentation for Acord - Life, Annuity & Health Standards Program
Definition Type: ComplexType
Name: AnnuityUSA_Type
Namespace: http://ACORD.org/Standards/Life/2
Containing Schema: XMLife2.20.01.xsd
Abstract

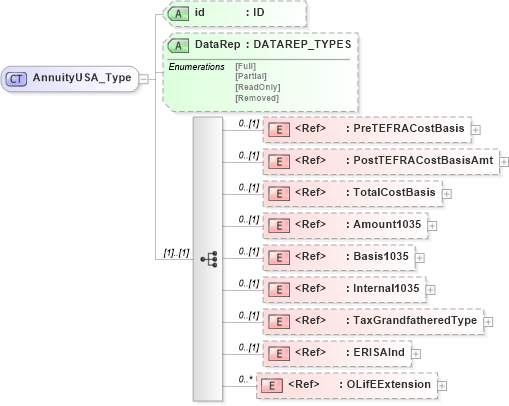

Collapse XSD Schema Diagram:
Drilldown into OLifEExtension in schema xlifebase2_20_01_xsd Drilldown into ERISAInd in schema xmlife2_20_01_xsd Drilldown into TaxGrandfatheredType in schema xmlife2_20_01_xsd Drilldown into Internal1035 in schema xmlife2_20_01_xsd Drilldown into Basis1035 in schema xmlife2_20_01_xsd Drilldown into Amount1035 in schema xmlife2_20_01_xsd Drilldown into TotalCostBasis in schema xmlife2_20_01_xsd Drilldown into PostTEFRACostBasisAmt in schema xmlife2_20_01_xsd Drilldown into PreTEFRACostBasis in schema xmlife2_20_01_xsd Drilldown into DataRep in schema xmlife2_20_01_xsd Drilldown into id in schema xmlife2_20_01_xsdXSD Diagram of AnnuityUSA_Type in schema xmlife2_20_01_xsd (Acord - Life, Annuity & Health Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="AnnuityUSA_Type">
    <xsd:sequence>
        <xsd:element ref="PreTEFRACostBasis" minOccurs="0" />
        <xsd:element ref="PostTEFRACostBasisAmt" minOccurs="0" />
        <xsd:element ref="TotalCostBasis" minOccurs="0" />
        <xsd:element ref="Amount1035" minOccurs="0" />
        <xsd:element ref="Basis1035" minOccurs="0" />
        <xsd:element ref="Internal1035" minOccurs="0" />
        <xsd:element ref="TaxGrandfatheredType" minOccurs="0" />
        <xsd:element ref="ERISAInd" minOccurs="0" />
        <xsd:element ref="OLifEExtension" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="id" type="xsd:ID" />
    <xsd:attribute name="DataRep" type="DATAREP_TYPES" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PreTEFRACostBasis nsA:PreTEFRACostBasis 0 (1)
PostTEFRACostBasisAmt nsA:PostTEFRACostBasisAmt 0 (1)
TotalCostBasis nsA:TotalCostBasis 0 (1)
Amount1035 nsA:Amount1035 0 (1)
Basis1035 nsA:Basis1035 0 (1)
Internal1035 nsA:Internal1035 0 (1)
TaxGrandfatheredType nsA:TaxGrandfatheredType 0 (1)
ERISAInd nsA:ERISAInd 0 (1)
OLifEExtension nsA:OLifEExtension 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
DataRep nsA:DataRep (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:AnnuityUSA
