Documentation for Acord - Life, Annuity & Health Standards Program
Definition Type: ComplexType
Name: Banking_Type
Namespace: http://ACORD.org/Standards/Life/2
Containing Schema: XMLife2.20.01.xsd
Abstract

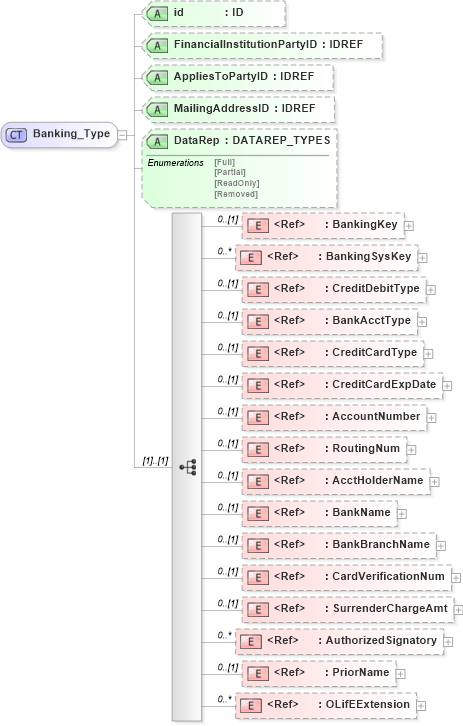

Collapse XSD Schema Diagram:
Drilldown into OLifEExtension in schema xlifebase2_20_01_xsd Drilldown into PriorName in schema xmlife2_20_01_xsd Drilldown into AuthorizedSignatory in schema xmlife2_20_01_xsd Drilldown into SurrenderChargeAmt in schema xmlife2_20_01_xsd Drilldown into CardVerificationNum in schema xmlife2_20_01_xsd Drilldown into BankBranchName in schema xmlife2_20_01_xsd Drilldown into BankName in schema xmlife2_20_01_xsd Drilldown into AcctHolderName in schema xmlife2_20_01_xsd Drilldown into RoutingNum in schema xmlife2_20_01_xsd Drilldown into AccountNumber in schema xmlife2_20_01_xsd Drilldown into CreditCardExpDate in schema xmlife2_20_01_xsd Drilldown into CreditCardType in schema xmlife2_20_01_xsd Drilldown into BankAcctType in schema xmlife2_20_01_xsd Drilldown into CreditDebitType in schema xmlife2_20_01_xsd Drilldown into BankingSysKey in schema xmlife2_20_01_xsd Drilldown into BankingKey in schema xmlife2_20_01_xsd Drilldown into DataRep in schema xmlife2_20_01_xsd Drilldown into MailingAddressID in schema xmlife2_20_01_xsd Drilldown into AppliesToPartyID in schema xmlife2_20_01_xsd Drilldown into FinancialInstitutionPartyID in schema xmlife2_20_01_xsd Drilldown into id in schema xmlife2_20_01_xsdXSD Diagram of Banking_Type in schema xmlife2_20_01_xsd (Acord - Life, Annuity & Health Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="Banking_Type">
    <xsd:sequence>
        <xsd:element ref="BankingKey" minOccurs="0" />
        <xsd:element ref="BankingSysKey" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="CreditDebitType" minOccurs="0" />
        <xsd:element ref="BankAcctType" minOccurs="0" />
        <xsd:element ref="CreditCardType" minOccurs="0" />
        <xsd:element ref="CreditCardExpDate" minOccurs="0" />
        <xsd:element ref="AccountNumber" minOccurs="0" />
        <xsd:element ref="RoutingNum" minOccurs="0" />
        <xsd:element ref="AcctHolderName" minOccurs="0" />
        <xsd:element ref="BankName" minOccurs="0" />
        <xsd:element ref="BankBranchName" minOccurs="0" />
        <xsd:element ref="CardVerificationNum" minOccurs="0" />
        <xsd:element ref="SurrenderChargeAmt" minOccurs="0" />
        <xsd:element ref="AuthorizedSignatory" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="PriorName" minOccurs="0" />
        <xsd:element ref="OLifEExtension" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="id" type="xsd:ID" />
    <xsd:attribute name="FinancialInstitutionPartyID" type="xsd:IDREF" />
    <xsd:attribute name="AppliesToPartyID" type="xsd:IDREF" />
    <xsd:attribute name="MailingAddressID" type="xsd:IDREF" />
    <xsd:attribute name="DataRep" type="DATAREP_TYPES" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
BankingKey nsA:BankingKey 0 (1)
BankingSysKey nsA:BankingSysKey 0 unbounded
CreditDebitType nsA:CreditDebitType 0 (1)
BankAcctType nsA:BankAcctType 0 (1)
CreditCardType nsA:CreditCardType 0 (1)
CreditCardExpDate nsA:CreditCardExpDate 0 (1)
AccountNumber nsA:AccountNumber 0 (1)
RoutingNum nsA:RoutingNum 0 (1)
AcctHolderName nsA:AcctHolderName 0 (1)
BankName nsA:BankName 0 (1)
BankBranchName nsA:BankBranchName 0 (1)
CardVerificationNum nsA:CardVerificationNum 0 (1)
SurrenderChargeAmt nsA:SurrenderChargeAmt 0 (1)
AuthorizedSignatory nsA:AuthorizedSignatory 0 unbounded
PriorName nsA:PriorName 0 (1)
OLifEExtension nsA:OLifEExtension 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
FinancialInstitutionPartyID nsA:FinancialInstitutionPartyID (Optional)
AppliesToPartyID nsA:AppliesToPartyID (Optional)
MailingAddressID nsA:MailingAddressID (Optional)
DataRep nsA:DataRep (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:Banking
