Documentation for Acord - Life, Annuity & Health Standards Program
Definition Type: ComplexType
Name: BenefitLimitOption_Type
Namespace: http://ACORD.org/Standards/Life/2
Containing Schema: XMLife2.20.01.xsd
Abstract

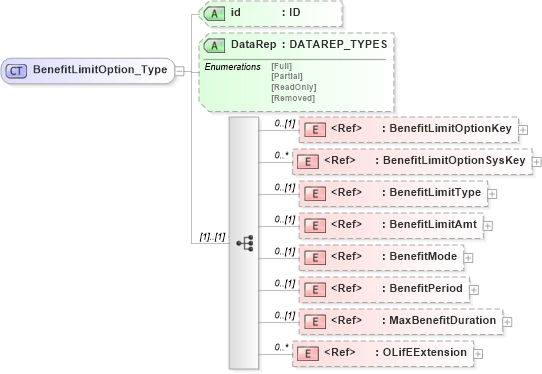

Collapse XSD Schema Diagram:
Drilldown into OLifEExtension in schema xlifebase2_20_01_xsd Drilldown into MaxBenefitDuration in schema xmlife2_20_01_xsd Drilldown into BenefitPeriod in schema xmlife2_20_01_xsd Drilldown into BenefitMode in schema xmlife2_20_01_xsd Drilldown into BenefitLimitAmt in schema xmlife2_20_01_xsd Drilldown into BenefitLimitType in schema xmlife2_20_01_xsd Drilldown into BenefitLimitOptionSysKey in schema xmlife2_20_01_xsd Drilldown into BenefitLimitOptionKey in schema xmlife2_20_01_xsd Drilldown into DataRep in schema xmlife2_20_01_xsd Drilldown into id in schema xmlife2_20_01_xsdXSD Diagram of BenefitLimitOption_Type in schema xmlife2_20_01_xsd (Acord - Life, Annuity & Health Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="BenefitLimitOption_Type">
    <xsd:sequence>
        <xsd:element ref="BenefitLimitOptionKey" minOccurs="0" />
        <xsd:element ref="BenefitLimitOptionSysKey" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="BenefitLimitType" minOccurs="0" />
        <xsd:element ref="BenefitLimitAmt" minOccurs="0" />
        <xsd:element ref="BenefitMode" minOccurs="0" />
        <xsd:element ref="BenefitPeriod" minOccurs="0" />
        <xsd:element ref="MaxBenefitDuration" minOccurs="0" />
        <xsd:element ref="OLifEExtension" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="id" type="xsd:ID" />
    <xsd:attribute name="DataRep" type="DATAREP_TYPES" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
BenefitLimitOptionKey nsA:BenefitLimitOptionKey 0 (1)
BenefitLimitOptionSysKey nsA:BenefitLimitOptionSysKey 0 unbounded
BenefitLimitType nsA:BenefitLimitType 0 (1)
BenefitLimitAmt nsA:BenefitLimitAmt 0 (1)
BenefitMode nsA:BenefitMode 0 (1)
BenefitPeriod nsA:BenefitPeriod 0 (1)
MaxBenefitDuration nsA:MaxBenefitDuration 0 (1)
OLifEExtension nsA:OLifEExtension 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
DataRep nsA:DataRep (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:BenefitLimitOption
