Documentation for Acord - Life, Annuity & Health Standards Program
Definition Type: ComplexType
Name: BillingStatement_Type
Namespace: http://ACORD.org/Standards/Life/2
Containing Schema: XMLife2.20.01.xsd
Abstract

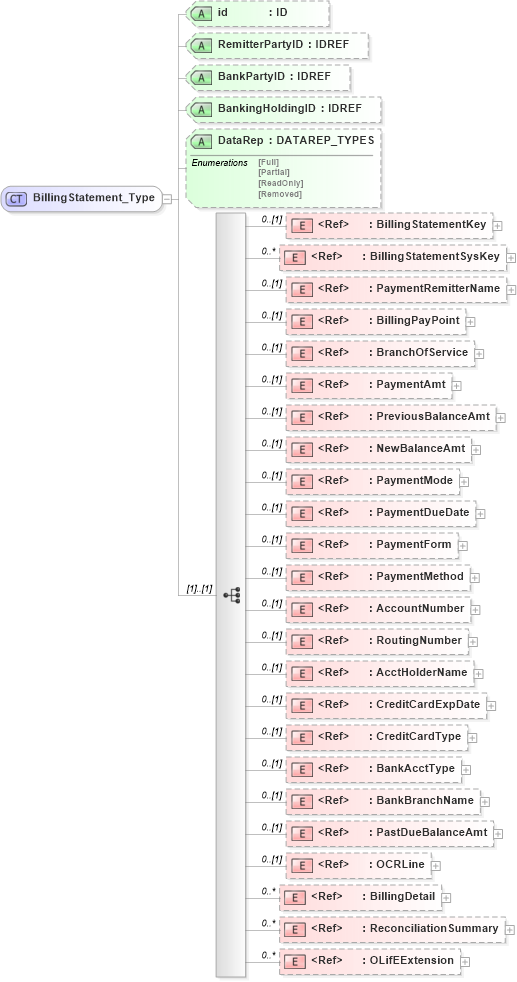

Collapse XSD Schema Diagram:
Drilldown into OLifEExtension in schema xlifebase2_20_01_xsd Drilldown into ReconciliationSummary in schema xmlife2_20_01_xsd Drilldown into BillingDetail in schema xmlife2_20_01_xsd Drilldown into OCRLine in schema xmlife2_20_01_xsd Drilldown into PastDueBalanceAmt in schema xmlife2_20_01_xsd Drilldown into BankBranchName in schema xmlife2_20_01_xsd Drilldown into BankAcctType in schema xmlife2_20_01_xsd Drilldown into CreditCardType in schema xmlife2_20_01_xsd Drilldown into CreditCardExpDate in schema xmlife2_20_01_xsd Drilldown into AcctHolderName in schema xmlife2_20_01_xsd Drilldown into RoutingNumber in schema xmlife2_20_01_xsd Drilldown into AccountNumber in schema xmlife2_20_01_xsd Drilldown into PaymentMethod in schema xmlife2_20_01_xsd Drilldown into PaymentForm in schema xmlife2_20_01_xsd Drilldown into PaymentDueDate in schema xmlife2_20_01_xsd Drilldown into PaymentMode in schema xmlife2_20_01_xsd Drilldown into NewBalanceAmt in schema xmlife2_20_01_xsd Drilldown into PreviousBalanceAmt in schema xmlife2_20_01_xsd Drilldown into PaymentAmt in schema xmlife2_20_01_xsd Drilldown into BranchOfService in schema xmlife2_20_01_xsd Drilldown into BillingPayPoint in schema xmlife2_20_01_xsd Drilldown into PaymentRemitterName in schema xmlife2_20_01_xsd Drilldown into BillingStatementSysKey in schema xmlife2_20_01_xsd Drilldown into BillingStatementKey in schema xmlife2_20_01_xsd Drilldown into DataRep in schema xmlife2_20_01_xsd Drilldown into BankingHoldingID in schema xmlife2_20_01_xsd Drilldown into BankPartyID in schema xmlife2_20_01_xsd Drilldown into RemitterPartyID in schema xmlife2_20_01_xsd Drilldown into id in schema xmlife2_20_01_xsdXSD Diagram of BillingStatement_Type in schema xmlife2_20_01_xsd (Acord - Life, Annuity & Health Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="BillingStatement_Type">
    <xsd:sequence>
        <xsd:element ref="BillingStatementKey" minOccurs="0" />
        <xsd:element ref="BillingStatementSysKey" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="PaymentRemitterName" minOccurs="0" />
        <xsd:element ref="BillingPayPoint" minOccurs="0" />
        <xsd:element ref="BranchOfService" minOccurs="0" />
        <xsd:element ref="PaymentAmt" minOccurs="0" />
        <xsd:element ref="PreviousBalanceAmt" minOccurs="0" />
        <xsd:element ref="NewBalanceAmt" minOccurs="0" />
        <xsd:element ref="PaymentMode" minOccurs="0" />
        <xsd:element ref="PaymentDueDate" minOccurs="0" />
        <xsd:element ref="PaymentForm" minOccurs="0" />
        <xsd:element ref="PaymentMethod" minOccurs="0" />
        <xsd:element ref="AccountNumber" minOccurs="0" />
        <xsd:element ref="RoutingNumber" minOccurs="0" />
        <xsd:element ref="AcctHolderName" minOccurs="0" />
        <xsd:element ref="CreditCardExpDate" minOccurs="0" />
        <xsd:element ref="CreditCardType" minOccurs="0" />
        <xsd:element ref="BankAcctType" minOccurs="0" />
        <xsd:element ref="BankBranchName" minOccurs="0" />
        <xsd:element ref="PastDueBalanceAmt" minOccurs="0" />
        <xsd:element ref="OCRLine" minOccurs="0" />
        <xsd:element ref="BillingDetail" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ReconciliationSummary" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="OLifEExtension" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="id" type="xsd:ID" />
    <xsd:attribute name="RemitterPartyID" type="xsd:IDREF" />
    <xsd:attribute name="BankPartyID" type="xsd:IDREF" />
    <xsd:attribute name="BankingHoldingID" type="xsd:IDREF" />
    <xsd:attribute name="DataRep" type="DATAREP_TYPES" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
BillingStatementKey nsA:BillingStatementKey 0 (1)
BillingStatementSysKey nsA:BillingStatementSysKey 0 unbounded
PaymentRemitterName nsA:PaymentRemitterName 0 (1)
BillingPayPoint nsA:BillingPayPoint 0 (1)
BranchOfService nsA:BranchOfService 0 (1)
PaymentAmt nsA:PaymentAmt 0 (1)
PreviousBalanceAmt nsA:PreviousBalanceAmt 0 (1)
NewBalanceAmt nsA:NewBalanceAmt 0 (1)
PaymentMode nsA:PaymentMode 0 (1)
PaymentDueDate nsA:PaymentDueDate 0 (1)
PaymentForm nsA:PaymentForm 0 (1)
PaymentMethod nsA:PaymentMethod 0 (1)
AccountNumber nsA:AccountNumber 0 (1)
RoutingNumber nsA:RoutingNumber 0 (1)
AcctHolderName nsA:AcctHolderName 0 (1)
CreditCardExpDate nsA:CreditCardExpDate 0 (1)
CreditCardType nsA:CreditCardType 0 (1)
BankAcctType nsA:BankAcctType 0 (1)
BankBranchName nsA:BankBranchName 0 (1)
PastDueBalanceAmt nsA:PastDueBalanceAmt 0 (1)
OCRLine nsA:OCRLine 0 (1)
BillingDetail nsA:BillingDetail 0 unbounded
ReconciliationSummary nsA:ReconciliationSummary 0 unbounded
OLifEExtension nsA:OLifEExtension 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
RemitterPartyID nsA:RemitterPartyID (Optional)
BankPartyID nsA:BankPartyID (Optional)
BankingHoldingID nsA:BankingHoldingID (Optional)
DataRep nsA:DataRep (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:BillingStatement
