Documentation for Acord - Life, Annuity & Health Standards Program
Definition Type: ComplexType
Name: ClaimMedConditionInfo_Type
Namespace: http://ACORD.org/Standards/Life/2
Containing Schema: XMLife2.20.01.xsd
Abstract

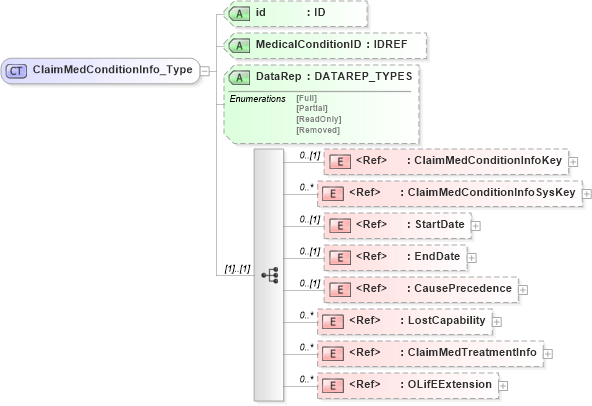

Collapse XSD Schema Diagram:
Drilldown into OLifEExtension in schema xlifebase2_20_01_xsd Drilldown into ClaimMedTreatmentInfo in schema xmlife2_20_01_xsd Drilldown into LostCapability in schema xmlife2_20_01_xsd Drilldown into CausePrecedence in schema xmlife2_20_01_xsd Drilldown into EndDate in schema xlifebase2_20_01_xsd Drilldown into StartDate in schema xlifebase2_20_01_xsd Drilldown into ClaimMedConditionInfoSysKey in schema xmlife2_20_01_xsd Drilldown into ClaimMedConditionInfoKey in schema xmlife2_20_01_xsd Drilldown into DataRep in schema xmlife2_20_01_xsd Drilldown into MedicalConditionID in schema xmlife2_20_01_xsd Drilldown into id in schema xmlife2_20_01_xsdXSD Diagram of ClaimMedConditionInfo_Type in schema xmlife2_20_01_xsd (Acord - Life, Annuity & Health Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="ClaimMedConditionInfo_Type">
    <xsd:sequence>
        <xsd:element ref="ClaimMedConditionInfoKey" minOccurs="0" />
        <xsd:element ref="ClaimMedConditionInfoSysKey" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="StartDate" minOccurs="0" />
        <xsd:element ref="EndDate" minOccurs="0" />
        <xsd:element ref="CausePrecedence" minOccurs="0" />
        <xsd:element ref="LostCapability" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ClaimMedTreatmentInfo" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="OLifEExtension" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="id" type="xsd:ID" />
    <xsd:attribute name="MedicalConditionID" type="xsd:IDREF" />
    <xsd:attribute name="DataRep" type="DATAREP_TYPES" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ClaimMedConditionInfoKey nsA:ClaimMedConditionInfoKey 0 (1)
ClaimMedConditionInfoSysKey nsA:ClaimMedConditionInfoSysKey 0 unbounded
StartDate nsA:StartDate 0 (1)
EndDate nsA:EndDate 0 (1)
CausePrecedence nsA:CausePrecedence 0 (1)
LostCapability nsA:LostCapability 0 unbounded
ClaimMedTreatmentInfo nsA:ClaimMedTreatmentInfo 0 unbounded
OLifEExtension nsA:OLifEExtension 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
MedicalConditionID nsA:MedicalConditionID (Optional)
DataRep nsA:DataRep (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:ClaimMedConditionInfo
