Documentation for Acord - Life, Annuity & Health Standards Program
Definition Type: ComplexType
Name: CommissionCalcActivity_Type
Namespace: http://ACORD.org/Standards/Life/2
Containing Schema: XMLife2.20.01.xsd
Abstract

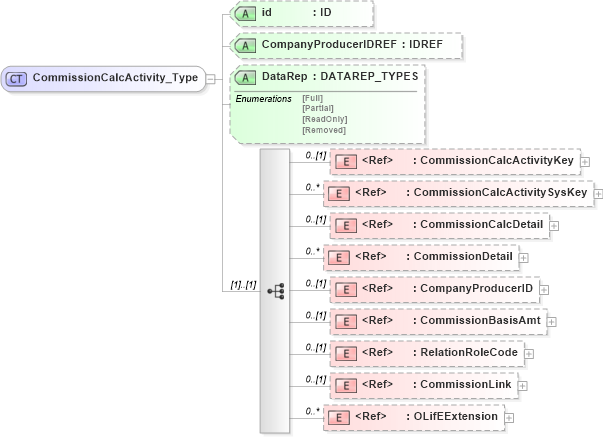

Collapse XSD Schema Diagram:
Drilldown into OLifEExtension in schema xlifebase2_20_01_xsd Drilldown into CommissionLink in schema xmlife2_20_01_xsd Drilldown into RelationRoleCode in schema xmlife2_20_01_xsd Drilldown into CommissionBasisAmt in schema xmlife2_20_01_xsd Drilldown into CompanyProducerID in schema xmlife2_20_01_xsd Drilldown into CommissionDetail in schema xmlife2_20_01_xsd Drilldown into CommissionCalcDetail in schema xmlife2_20_01_xsd Drilldown into CommissionCalcActivitySysKey in schema xmlife2_20_01_xsd Drilldown into CommissionCalcActivityKey in schema xmlife2_20_01_xsd Drilldown into DataRep in schema xmlife2_20_01_xsd Drilldown into CompanyProducerIDREF in schema xmlife2_20_01_xsd Drilldown into id in schema xmlife2_20_01_xsdXSD Diagram of CommissionCalcActivity_Type in schema xmlife2_20_01_xsd (Acord - Life, Annuity & Health Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="CommissionCalcActivity_Type">
    <xsd:sequence>
        <xsd:element ref="CommissionCalcActivityKey" minOccurs="0" />
        <xsd:element ref="CommissionCalcActivitySysKey" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="CommissionCalcDetail" minOccurs="0" />
        <xsd:element ref="CommissionDetail" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="CompanyProducerID" minOccurs="0" />
        <xsd:element ref="CommissionBasisAmt" minOccurs="0" />
        <xsd:element ref="RelationRoleCode" minOccurs="0" />
        <xsd:element ref="CommissionLink" minOccurs="0" />
        <xsd:element ref="OLifEExtension" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="id" type="xsd:ID" />
    <xsd:attribute name="CompanyProducerIDREF" type="xsd:IDREF" />
    <xsd:attribute name="DataRep" type="DATAREP_TYPES" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CommissionCalcActivityKey nsA:CommissionCalcActivityKey 0 (1)
CommissionCalcActivitySysKey nsA:CommissionCalcActivitySysKey 0 unbounded
CommissionCalcDetail nsA:CommissionCalcDetail 0 (1)
CommissionDetail nsA:CommissionDetail 0 unbounded
CompanyProducerID nsA:CompanyProducerID 0 (1)
CommissionBasisAmt nsA:CommissionBasisAmt 0 (1)
RelationRoleCode nsA:RelationRoleCode 0 (1)
CommissionLink nsA:CommissionLink 0 (1)
OLifEExtension nsA:OLifEExtension 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
CompanyProducerIDREF nsA:CompanyProducerIDREF (Optional)
DataRep nsA:DataRep (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:CommissionCalcActivity
