Documentation for Acord - Life, Annuity & Health Standards Program
Definition Type: ComplexType
Name: CriteriaExpression_Type
Namespace: http://ACORD.org/Standards/Life/2
Containing Schema: TXLife2.20.01.xsd
Abstract

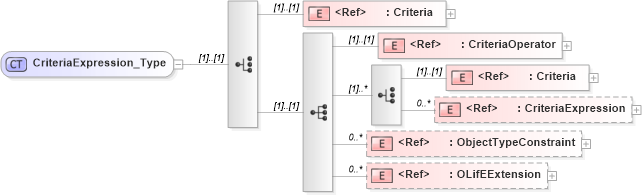

Collapse XSD Schema Diagram:
Drilldown into OLifEExtension in schema xlifebase2_20_01_xsd Drilldown into ObjectTypeConstraint in schema txlife2_20_01_xsd Drilldown into CriteriaExpression in schema txlife2_20_01_xsd Drilldown into Criteria in schema xlifebase2_20_01_xsd Drilldown into CriteriaOperator in schema xmlife2_20_01_xsd Drilldown into Criteria in schema xlifebase2_20_01_xsdXSD Diagram of CriteriaExpression_Type in schema txlife2_20_01_xsd (Acord - Life, Annuity & Health Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="CriteriaExpression_Type">
    <xsd:choice>
        <xsd:element ref="Criteria" />
        <xsd:sequence>
            <xsd:element ref="CriteriaOperator" />
            <xsd:choice maxOccurs="unbounded">
                <xsd:element ref="Criteria" />
                <xsd:element ref="CriteriaExpression" minOccurs="0" maxOccurs="unbounded" />
            </xsd:choice>
            <xsd:element ref="ObjectTypeConstraint" minOccurs="0" maxOccurs="unbounded" />
            <xsd:element ref="OLifEExtension" minOccurs="0" maxOccurs="unbounded" />
        </xsd:sequence>
    </xsd:choice>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Criteria nsA:Criteria (1) (1)
CriteriaOperator nsA:CriteriaOperator (1) (1)
Criteria nsA:Criteria (1) (1)
CriteriaExpression nsA:CriteriaExpression 0 unbounded
ObjectTypeConstraint nsA:ObjectTypeConstraint 0 unbounded
OLifEExtension nsA:OLifEExtension 0 unbounded
Collapse Derivation Tree:
Collapse References:
nsA:CriteriaExpression
