Documentation for Acord - Life, Annuity & Health Standards Program
Definition Type: ComplexType
Name: DistributionAgreementInfo_Type
Namespace: http://ACORD.org/Standards/Life/2
Containing Schema: XMLife2.20.01.xsd
Abstract

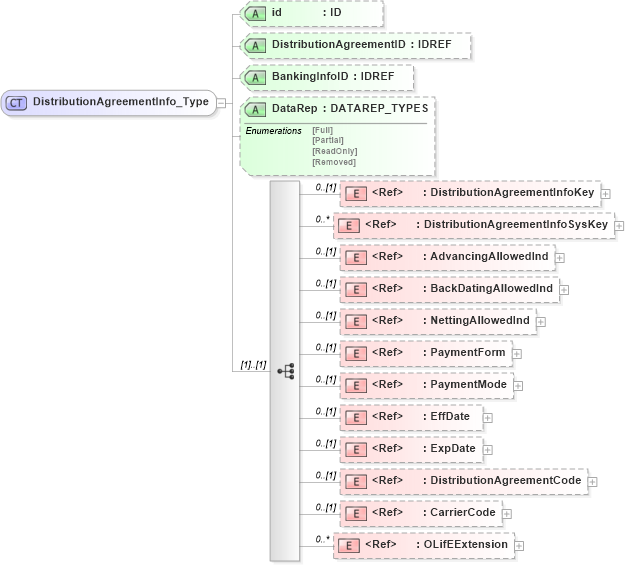

Collapse XSD Schema Diagram:
Drilldown into OLifEExtension in schema xlifebase2_20_01_xsd Drilldown into CarrierCode in schema xmlife2_20_01_xsd Drilldown into DistributionAgreementCode in schema xmlife2_20_01_xsd Drilldown into ExpDate in schema xmlife2_20_01_xsd Drilldown into EffDate in schema xlifebase2_20_01_xsd Drilldown into PaymentMode in schema xmlife2_20_01_xsd Drilldown into PaymentForm in schema xmlife2_20_01_xsd Drilldown into NettingAllowedInd in schema xmlife2_20_01_xsd Drilldown into BackDatingAllowedInd in schema xmlife2_20_01_xsd Drilldown into AdvancingAllowedInd in schema xmlife2_20_01_xsd Drilldown into DistributionAgreementInfoSysKey in schema xmlife2_20_01_xsd Drilldown into DistributionAgreementInfoKey in schema xmlife2_20_01_xsd Drilldown into DataRep in schema xmlife2_20_01_xsd Drilldown into BankingInfoID in schema xmlife2_20_01_xsd Drilldown into DistributionAgreementID in schema xmlife2_20_01_xsd Drilldown into id in schema xmlife2_20_01_xsdXSD Diagram of DistributionAgreementInfo_Type in schema xmlife2_20_01_xsd (Acord - Life, Annuity & Health Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="DistributionAgreementInfo_Type">
    <xsd:sequence>
        <xsd:element ref="DistributionAgreementInfoKey" minOccurs="0" />
        <xsd:element ref="DistributionAgreementInfoSysKey" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="AdvancingAllowedInd" minOccurs="0" />
        <xsd:element ref="BackDatingAllowedInd" minOccurs="0" />
        <xsd:element ref="NettingAllowedInd" minOccurs="0" />
        <xsd:element ref="PaymentForm" minOccurs="0" />
        <xsd:element ref="PaymentMode" minOccurs="0" />
        <xsd:element ref="EffDate" minOccurs="0" />
        <xsd:element ref="ExpDate" minOccurs="0" />
        <xsd:element ref="DistributionAgreementCode" minOccurs="0" />
        <xsd:element ref="CarrierCode" minOccurs="0" />
        <xsd:element ref="OLifEExtension" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="id" type="xsd:ID" />
    <xsd:attribute name="DistributionAgreementID" type="xsd:IDREF" />
    <xsd:attribute name="BankingInfoID" type="xsd:IDREF" />
    <xsd:attribute name="DataRep" type="DATAREP_TYPES" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DistributionAgreementInfoKey nsA:DistributionAgreementInfoKey 0 (1)
DistributionAgreementInfoSysKey nsA:DistributionAgreementInfoSysKey 0 unbounded
AdvancingAllowedInd nsA:AdvancingAllowedInd 0 (1)
BackDatingAllowedInd nsA:BackDatingAllowedInd 0 (1)
NettingAllowedInd nsA:NettingAllowedInd 0 (1)
PaymentForm nsA:PaymentForm 0 (1)
PaymentMode nsA:PaymentMode 0 (1)
EffDate nsA:EffDate 0 (1)
ExpDate nsA:ExpDate 0 (1)
DistributionAgreementCode nsA:DistributionAgreementCode 0 (1)
CarrierCode nsA:CarrierCode 0 (1)
OLifEExtension nsA:OLifEExtension 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
DistributionAgreementID nsA:DistributionAgreementID (Optional)
BankingInfoID nsA:BankingInfoID (Optional)
DataRep nsA:DataRep (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:DistributionAgreementInfo
