Documentation for Acord - Life, Annuity & Health Standards Program
Definition Type: ComplexType
Name: Education_Type
Namespace: http://ACORD.org/Standards/Life/2
Containing Schema: XMLife2.20.01.xsd
Abstract

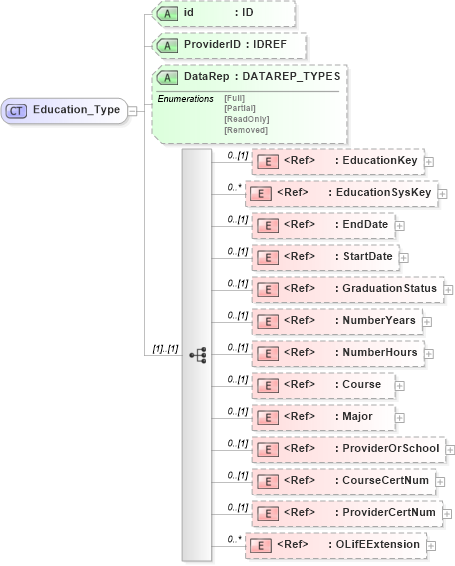

Collapse XSD Schema Diagram:
Drilldown into OLifEExtension in schema xlifebase2_20_01_xsd Drilldown into ProviderCertNum in schema xmlife2_20_01_xsd Drilldown into CourseCertNum in schema xmlife2_20_01_xsd Drilldown into ProviderOrSchool in schema xmlife2_20_01_xsd Drilldown into Major in schema xmlife2_20_01_xsd Drilldown into Course in schema xmlife2_20_01_xsd Drilldown into NumberHours in schema xmlife2_20_01_xsd Drilldown into NumberYears in schema xmlife2_20_01_xsd Drilldown into GraduationStatus in schema xmlife2_20_01_xsd Drilldown into StartDate in schema xlifebase2_20_01_xsd Drilldown into EndDate in schema xlifebase2_20_01_xsd Drilldown into EducationSysKey in schema xmlife2_20_01_xsd Drilldown into EducationKey in schema xmlife2_20_01_xsd Drilldown into DataRep in schema xmlife2_20_01_xsd Drilldown into ProviderID in schema xmlife2_20_01_xsd Drilldown into id in schema xmlife2_20_01_xsdXSD Diagram of Education_Type in schema xmlife2_20_01_xsd (Acord - Life, Annuity & Health Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="Education_Type">
    <xsd:sequence>
        <xsd:element ref="EducationKey" minOccurs="0" />
        <xsd:element ref="EducationSysKey" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="EndDate" minOccurs="0" />
        <xsd:element ref="StartDate" minOccurs="0" />
        <xsd:element ref="GraduationStatus" minOccurs="0" />
        <xsd:element ref="NumberYears" minOccurs="0" />
        <xsd:element ref="NumberHours" minOccurs="0" />
        <xsd:element ref="Course" minOccurs="0" />
        <xsd:element ref="Major" minOccurs="0" />
        <xsd:element ref="ProviderOrSchool" minOccurs="0" />
        <xsd:element ref="CourseCertNum" minOccurs="0" />
        <xsd:element ref="ProviderCertNum" minOccurs="0" />
        <xsd:element ref="OLifEExtension" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="id" type="xsd:ID" />
    <xsd:attribute name="ProviderID" type="xsd:IDREF" />
    <xsd:attribute name="DataRep" type="DATAREP_TYPES" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
EducationKey nsA:EducationKey 0 (1)
EducationSysKey nsA:EducationSysKey 0 unbounded
EndDate nsA:EndDate 0 (1)
StartDate nsA:StartDate 0 (1)
GraduationStatus nsA:GraduationStatus 0 (1)
NumberYears nsA:NumberYears 0 (1)
NumberHours nsA:NumberHours 0 (1)
Course nsA:Course 0 (1)
Major nsA:Major 0 (1)
ProviderOrSchool nsA:ProviderOrSchool 0 (1)
CourseCertNum nsA:CourseCertNum 0 (1)
ProviderCertNum nsA:ProviderCertNum 0 (1)
OLifEExtension nsA:OLifEExtension 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
ProviderID nsA:ProviderID (Optional)
DataRep nsA:DataRep (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:Education
