Documentation for Acord - Life, Annuity & Health Standards Program
Definition Type: ComplexType
Name: GovtIDInfo_Type
Namespace: http://ACORD.org/Standards/Life/2
Containing Schema: XMLife2.20.01.xsd
Abstract

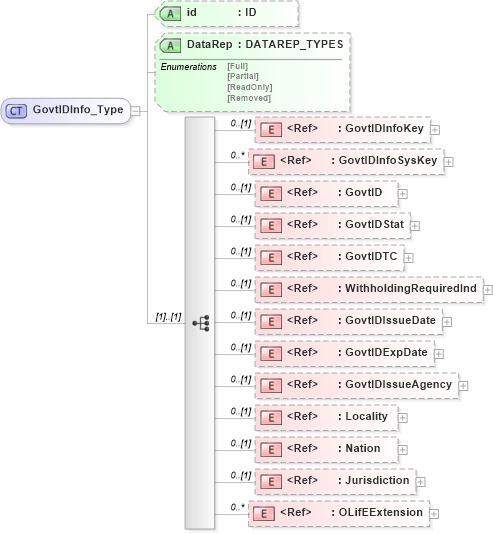

Collapse XSD Schema Diagram:
Drilldown into OLifEExtension in schema xlifebase2_20_01_xsd Drilldown into Jurisdiction in schema xlifebase2_20_01_xsd Drilldown into Nation in schema xlifebase2_20_01_xsd Drilldown into Locality in schema xmlife2_20_01_xsd Drilldown into GovtIDIssueAgency in schema xmlife2_20_01_xsd Drilldown into GovtIDExpDate in schema xmlife2_20_01_xsd Drilldown into GovtIDIssueDate in schema xmlife2_20_01_xsd Drilldown into WithholdingRequiredInd in schema xmlife2_20_01_xsd Drilldown into GovtIDTC in schema xmlife2_20_01_xsd Drilldown into GovtIDStat in schema xmlife2_20_01_xsd Drilldown into GovtID in schema xmlife2_20_01_xsd Drilldown into GovtIDInfoSysKey in schema xmlife2_20_01_xsd Drilldown into GovtIDInfoKey in schema xmlife2_20_01_xsd Drilldown into DataRep in schema xmlife2_20_01_xsd Drilldown into id in schema xmlife2_20_01_xsdXSD Diagram of GovtIDInfo_Type in schema xmlife2_20_01_xsd (Acord - Life, Annuity & Health Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="GovtIDInfo_Type">
    <xsd:sequence>
        <xsd:element ref="GovtIDInfoKey" minOccurs="0" />
        <xsd:element ref="GovtIDInfoSysKey" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="GovtID" minOccurs="0" />
        <xsd:element ref="GovtIDStat" minOccurs="0" />
        <xsd:element ref="GovtIDTC" minOccurs="0" />
        <xsd:element ref="WithholdingRequiredInd" minOccurs="0" />
        <xsd:element ref="GovtIDIssueDate" minOccurs="0" />
        <xsd:element ref="GovtIDExpDate" minOccurs="0" />
        <xsd:element ref="GovtIDIssueAgency" minOccurs="0" />
        <xsd:element ref="Locality" minOccurs="0" />
        <xsd:element ref="Nation" minOccurs="0" />
        <xsd:element ref="Jurisdiction" minOccurs="0" />
        <xsd:element ref="OLifEExtension" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="id" type="xsd:ID" />
    <xsd:attribute name="DataRep" type="DATAREP_TYPES" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
GovtIDInfoKey nsA:GovtIDInfoKey 0 (1)
GovtIDInfoSysKey nsA:GovtIDInfoSysKey 0 unbounded
GovtID nsA:GovtID 0 (1)
GovtIDStat nsA:GovtIDStat 0 (1)
GovtIDTC nsA:GovtIDTC 0 (1)
WithholdingRequiredInd nsA:WithholdingRequiredInd 0 (1)
GovtIDIssueDate nsA:GovtIDIssueDate 0 (1)
GovtIDExpDate nsA:GovtIDExpDate 0 (1)
GovtIDIssueAgency nsA:GovtIDIssueAgency 0 (1)
Locality nsA:Locality 0 (1)
Nation nsA:Nation 0 (1)
Jurisdiction nsA:Jurisdiction 0 (1)
OLifEExtension nsA:OLifEExtension 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
DataRep nsA:DataRep (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:GovtIDInfo
