Documentation for Acord - Life, Annuity & Health Standards Program
Definition Type: Element
Name: Grouping
Namespace: http://ACORD.org/Standards/Life/2
Type: nsA:Grouping_Type
Containing Schema: XMLife2.20.01.xsd
Abstract

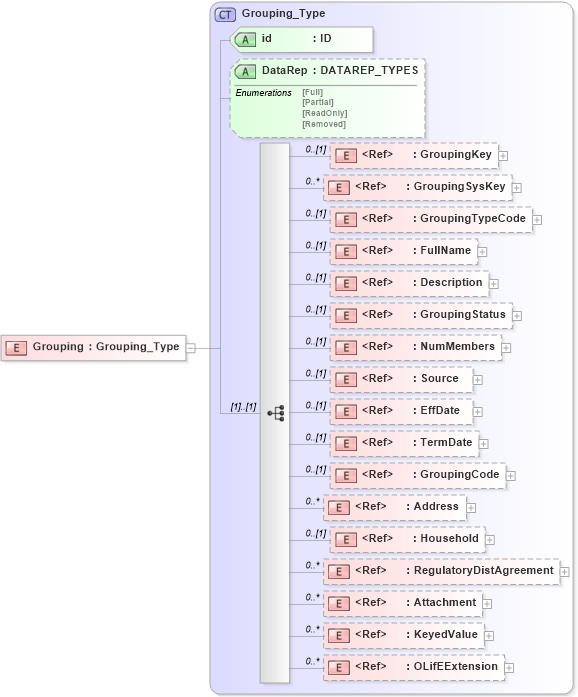

Collapse XSD Schema Diagram:
Drilldown into OLifEExtension in schema xlifebase2_20_01_xsd Drilldown into KeyedValue in schema xlifebase2_20_01_xsd Drilldown into Attachment in schema xmlife2_20_01_xsd Drilldown into RegulatoryDistAgreement in schema xmlife2_20_01_xsd Drilldown into Household in schema xmlife2_20_01_xsd Drilldown into Address in schema xmlife2_20_01_xsd Drilldown into GroupingCode in schema xmlife2_20_01_xsd Drilldown into TermDate in schema xmlife2_20_01_xsd Drilldown into EffDate in schema xlifebase2_20_01_xsd Drilldown into Source in schema xmlife2_20_01_xsd Drilldown into NumMembers in schema xmlife2_20_01_xsd Drilldown into GroupingStatus in schema xmlife2_20_01_xsd Drilldown into Description in schema xmlife2_20_01_xsd Drilldown into FullName in schema xmlife2_20_01_xsd Drilldown into GroupingTypeCode in schema xmlife2_20_01_xsd Drilldown into GroupingSysKey in schema xmlife2_20_01_xsd Drilldown into GroupingKey in schema xmlife2_20_01_xsd Drilldown into DataRep in schema xmlife2_20_01_xsd Drilldown into id in schema xmlife2_20_01_xsd Drilldown into Grouping_Type in schema xmlife2_20_01_xsdXSD Diagram of Grouping in schema xmlife2_20_01_xsd (Acord - Life, Annuity & Health Standards Program)
Collapse XSD Schema Code:
<xsd:element name="Grouping" type="Grouping_Type" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
GroupingKey nsA:GroupingKey 0 (1)
GroupingSysKey nsA:GroupingSysKey 0 unbounded
GroupingTypeCode nsA:GroupingTypeCode 0 (1)
FullName nsA:FullName 0 (1)
Description nsA:Description 0 (1)
GroupingStatus nsA:GroupingStatus 0 (1)
NumMembers nsA:NumMembers 0 (1)
Source nsA:Source 0 (1)
EffDate nsA:EffDate 0 (1)
TermDate nsA:TermDate 0 (1)
GroupingCode nsA:GroupingCode 0 (1)
Address nsA:Address 0 unbounded
Household nsA:Household 0 (1)
RegulatoryDistAgreement nsA:RegulatoryDistAgreement 0 unbounded
Attachment nsA:Attachment 0 unbounded
KeyedValue nsA:KeyedValue 0 unbounded
OLifEExtension nsA:OLifEExtension 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id Required
DataRep nsA:DataRep (Optional)
Collapse Derivation Tree:
