Documentation for Acord - Life, Annuity & Health Standards Program
Definition Type: ComplexType
Name: InquiryView_Type
Namespace: http://ACORD.org/Standards/Life/2
Containing Schema: TXLife2.20.01.xsd
Abstract

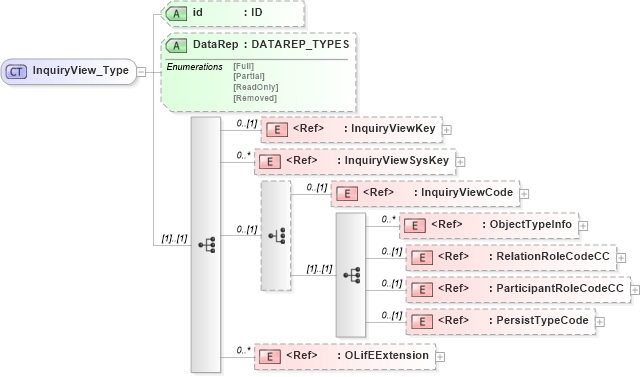

Collapse XSD Schema Diagram:
Drilldown into OLifEExtension in schema xlifebase2_20_01_xsd Drilldown into PersistTypeCode in schema txlife2_20_01_xsd Drilldown into ParticipantRoleCodeCC in schema txlife2_20_01_xsd Drilldown into RelationRoleCodeCC in schema txlife2_20_01_xsd Drilldown into ObjectTypeInfo in schema txlife2_20_01_xsd Drilldown into InquiryViewCode in schema txlife2_20_01_xsd Drilldown into InquiryViewSysKey in schema txlife2_20_01_xsd Drilldown into InquiryViewKey in schema txlife2_20_01_xsd Drilldown into DataRep in schema txlife2_20_01_xsd Drilldown into id in schema txlife2_20_01_xsdXSD Diagram of InquiryView_Type in schema txlife2_20_01_xsd (Acord - Life, Annuity & Health Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="InquiryView_Type">
    <xsd:sequence>
        <xsd:element ref="InquiryViewKey" minOccurs="0" />
        <xsd:element ref="InquiryViewSysKey" minOccurs="0" maxOccurs="unbounded" />
        <xsd:choice minOccurs="0">
            <xsd:element ref="InquiryViewCode" minOccurs="0" />
            <xsd:sequence>
                <xsd:element ref="ObjectTypeInfo" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="RelationRoleCodeCC" minOccurs="0" />
                <xsd:element ref="ParticipantRoleCodeCC" minOccurs="0" />
                <xsd:element ref="PersistTypeCode" minOccurs="0" />
            </xsd:sequence>
        </xsd:choice>
        <xsd:element ref="OLifEExtension" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="id" type="xsd:ID" />
    <xsd:attribute name="DataRep" type="DATAREP_TYPES" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
InquiryViewKey nsA:InquiryViewKey 0 (1)
InquiryViewSysKey nsA:InquiryViewSysKey 0 unbounded
InquiryViewCode nsA:InquiryViewCode 0 (1)
ObjectTypeInfo nsA:ObjectTypeInfo 0 unbounded
RelationRoleCodeCC nsA:RelationRoleCodeCC 0 (1)
ParticipantRoleCodeCC nsA:ParticipantRoleCodeCC 0 (1)
PersistTypeCode nsA:PersistTypeCode 0 (1)
OLifEExtension nsA:OLifEExtension 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
DataRep nsA:DataRep (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:InquiryView
