Documentation for Acord - Life, Annuity & Health Standards Program
Definition Type: ComplexType
Name: LogicalCriteria_Type
Namespace: http://ACORD.org/Standards/Life/2
Containing Schema: XMLife2.20.01.xsd
Abstract

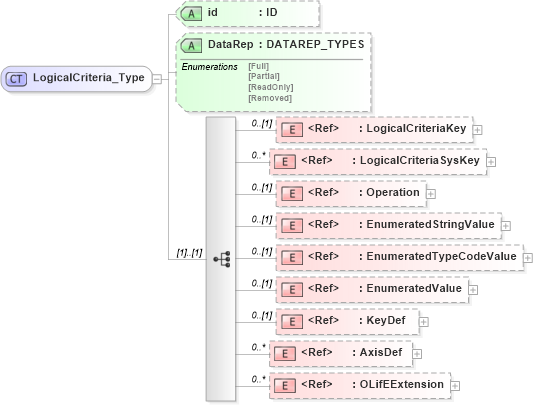

Collapse XSD Schema Diagram:
Drilldown into OLifEExtension in schema xlifebase2_20_01_xsd Drilldown into AxisDef in schema xtbml2_20_01_xsd Drilldown into KeyDef in schema xtbml2_20_01_xsd Drilldown into EnumeratedValue in schema xlifebase2_20_01_xsd Drilldown into EnumeratedTypeCodeValue in schema xtbml2_20_01_xsd Drilldown into EnumeratedStringValue in schema xtbml2_20_01_xsd Drilldown into Operation in schema xlifebase2_20_01_xsd Drilldown into LogicalCriteriaSysKey in schema xmlife2_20_01_xsd Drilldown into LogicalCriteriaKey in schema xmlife2_20_01_xsd Drilldown into DataRep in schema xmlife2_20_01_xsd Drilldown into id in schema xmlife2_20_01_xsdXSD Diagram of LogicalCriteria_Type in schema xmlife2_20_01_xsd (Acord - Life, Annuity & Health Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="LogicalCriteria_Type">
    <xsd:sequence>
        <xsd:element ref="LogicalCriteriaKey" minOccurs="0" />
        <xsd:element ref="LogicalCriteriaSysKey" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="Operation" minOccurs="0" />
        <xsd:element ref="EnumeratedStringValue" minOccurs="0" />
        <xsd:element ref="EnumeratedTypeCodeValue" minOccurs="0" />
        <xsd:element ref="EnumeratedValue" minOccurs="0" />
        <xsd:element ref="KeyDef" minOccurs="0" />
        <xsd:element ref="AxisDef" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="OLifEExtension" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="id" type="xsd:ID" />
    <xsd:attribute name="DataRep" type="DATAREP_TYPES" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LogicalCriteriaKey nsA:LogicalCriteriaKey 0 (1)
LogicalCriteriaSysKey nsA:LogicalCriteriaSysKey 0 unbounded
Operation nsA:Operation 0 (1)
EnumeratedStringValue nsA:EnumeratedStringValue 0 (1)
EnumeratedTypeCodeValue nsA:EnumeratedTypeCodeValue 0 (1)
EnumeratedValue nsA:EnumeratedValue 0 (1)
KeyDef nsA:KeyDef 0 (1)
AxisDef nsA:AxisDef 0 unbounded
OLifEExtension nsA:OLifEExtension 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
DataRep nsA:DataRep (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:LogicalCriteria
