Documentation for Acord - Life, Annuity & Health Standards Program
Definition Type: ComplexType
Name: MedicalPrevention_Type
Namespace: http://ACORD.org/Standards/Life/2
Containing Schema: XMLife2.20.01.xsd
Abstract

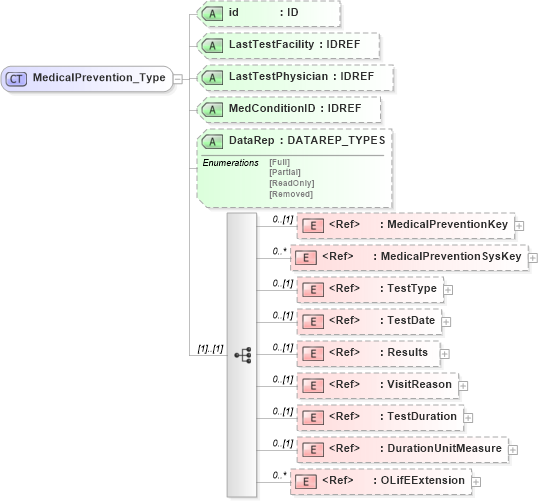

Collapse XSD Schema Diagram:
Drilldown into OLifEExtension in schema xlifebase2_20_01_xsd Drilldown into DurationUnitMeasure in schema xmlife2_20_01_xsd Drilldown into TestDuration in schema xmlife2_20_01_xsd Drilldown into VisitReason in schema xmlife2_20_01_xsd Drilldown into Results in schema xmlife2_20_01_xsd Drilldown into TestDate in schema xmlife2_20_01_xsd Drilldown into TestType in schema xmlife2_20_01_xsd Drilldown into MedicalPreventionSysKey in schema xmlife2_20_01_xsd Drilldown into MedicalPreventionKey in schema xmlife2_20_01_xsd Drilldown into DataRep in schema xmlife2_20_01_xsd Drilldown into MedConditionID in schema xmlife2_20_01_xsd Drilldown into LastTestPhysician in schema xmlife2_20_01_xsd Drilldown into LastTestFacility in schema xmlife2_20_01_xsd Drilldown into id in schema xmlife2_20_01_xsdXSD Diagram of MedicalPrevention_Type in schema xmlife2_20_01_xsd (Acord - Life, Annuity & Health Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="MedicalPrevention_Type">
    <xsd:sequence>
        <xsd:element ref="MedicalPreventionKey" minOccurs="0" />
        <xsd:element ref="MedicalPreventionSysKey" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="TestType" minOccurs="0" />
        <xsd:element ref="TestDate" minOccurs="0" />
        <xsd:element ref="Results" minOccurs="0" />
        <xsd:element ref="VisitReason" minOccurs="0" />
        <xsd:element ref="TestDuration" minOccurs="0" />
        <xsd:element ref="DurationUnitMeasure" minOccurs="0" />
        <xsd:element ref="OLifEExtension" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="id" type="xsd:ID" />
    <xsd:attribute name="LastTestFacility" type="xsd:IDREF" />
    <xsd:attribute name="LastTestPhysician" type="xsd:IDREF" />
    <xsd:attribute name="MedConditionID" type="xsd:IDREF" />
    <xsd:attribute name="DataRep" type="DATAREP_TYPES" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MedicalPreventionKey nsA:MedicalPreventionKey 0 (1)
MedicalPreventionSysKey nsA:MedicalPreventionSysKey 0 unbounded
TestType nsA:TestType 0 (1)
TestDate nsA:TestDate 0 (1)
Results nsA:Results 0 (1)
VisitReason nsA:VisitReason 0 (1)
TestDuration nsA:TestDuration 0 (1)
DurationUnitMeasure nsA:DurationUnitMeasure 0 (1)
OLifEExtension nsA:OLifEExtension 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
LastTestFacility nsA:LastTestFacility (Optional)
LastTestPhysician nsA:LastTestPhysician (Optional)
MedConditionID nsA:MedConditionID (Optional)
DataRep nsA:DataRep (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:MedicalPrevention
