Documentation for Acord - Life, Annuity & Health Standards Program
Definition Type: ComplexType
Name: Person_Type
Namespace: http://ACORD.org/Standards/Life/2
Containing Schema: XMLife2.20.01.xsd
Abstract

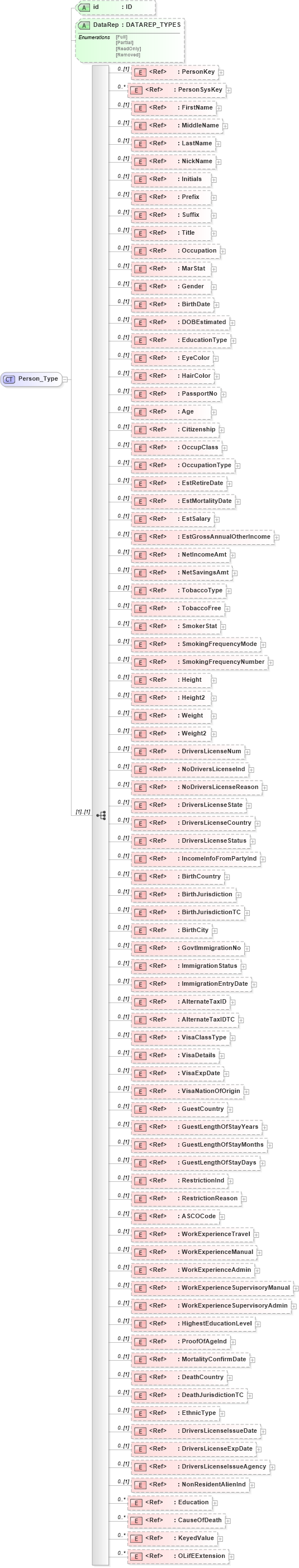

Collapse XSD Schema Diagram:
Drilldown into OLifEExtension in schema xlifebase2_20_01_xsd Drilldown into KeyedValue in schema xlifebase2_20_01_xsd Drilldown into CauseOfDeath in schema xmlife2_20_01_xsd Drilldown into Education in schema xmlife2_20_01_xsd Drilldown into NonResidentAlienInd in schema xmlife2_20_01_xsd Drilldown into DriversLicenseIssueAgency in schema xmlife2_20_01_xsd Drilldown into DriversLicenseExpDate in schema xmlife2_20_01_xsd Drilldown into DriversLicenseIssueDate in schema xmlife2_20_01_xsd Drilldown into EthnicType in schema xmlife2_20_01_xsd Drilldown into DeathJurisdictionTC in schema xmlife2_20_01_xsd Drilldown into DeathCountry in schema xmlife2_20_01_xsd Drilldown into MortalityConfirmDate in schema xmlife2_20_01_xsd Drilldown into ProofOfAgeInd in schema xmlife2_20_01_xsd Drilldown into HighestEducationLevel in schema xmlife2_20_01_xsd Drilldown into WorkExperienceSupervisoryAdmin in schema xmlife2_20_01_xsd Drilldown into WorkExperienceSupervisoryManual in schema xmlife2_20_01_xsd Drilldown into WorkExperienceAdmin in schema xmlife2_20_01_xsd Drilldown into WorkExperienceManual in schema xmlife2_20_01_xsd Drilldown into WorkExperienceTravel in schema xmlife2_20_01_xsd Drilldown into ASCOCode in schema xmlife2_20_01_xsd Drilldown into RestrictionReason in schema xmlife2_20_01_xsd Drilldown into RestrictionInd in schema xmlife2_20_01_xsd Drilldown into GuestLengthOfStayDays in schema xmlife2_20_01_xsd Drilldown into GuestLengthOfStayMonths in schema xmlife2_20_01_xsd Drilldown into GuestLengthOfStayYears in schema xmlife2_20_01_xsd Drilldown into GuestCountry in schema xmlife2_20_01_xsd Drilldown into VisaNationOfOrigin in schema xmlife2_20_01_xsd Drilldown into VisaExpDate in schema xmlife2_20_01_xsd Drilldown into VisaDetails in schema xmlife2_20_01_xsd Drilldown into VisaClassType in schema xmlife2_20_01_xsd Drilldown into AlternateTaxIDTC in schema xmlife2_20_01_xsd Drilldown into AlternateTaxID in schema xmlife2_20_01_xsd Drilldown into ImmigrationEntryDate in schema xmlife2_20_01_xsd Drilldown into ImmigrationStatus in schema xmlife2_20_01_xsd Drilldown into GovtImmigrationNo in schema xmlife2_20_01_xsd Drilldown into BirthCity in schema xmlife2_20_01_xsd Drilldown into BirthJurisdictionTC in schema xmlife2_20_01_xsd Drilldown into BirthJurisdiction in schema xmlife2_20_01_xsd Drilldown into BirthCountry in schema xmlife2_20_01_xsd Drilldown into IncomeInfoFromPartyInd in schema xmlife2_20_01_xsd Drilldown into DriversLicenseStatus in schema xmlife2_20_01_xsd Drilldown into DriversLicenseCountry in schema xmlife2_20_01_xsd Drilldown into DriversLicenseState in schema xmlife2_20_01_xsd Drilldown into NoDriversLicenseReason in schema xmlife2_20_01_xsd Drilldown into NoDriversLicenseInd in schema xmlife2_20_01_xsd Drilldown into DriversLicenseNum in schema xmlife2_20_01_xsd Drilldown into Weight2 in schema xmlife2_20_01_xsd Drilldown into Weight in schema xmlife2_20_01_xsd Drilldown into Height2 in schema xmlife2_20_01_xsd Drilldown into Height in schema xmlife2_20_01_xsd Drilldown into SmokingFrequencyNumber in schema xmlife2_20_01_xsd Drilldown into SmokingFrequencyMode in schema xmlife2_20_01_xsd Drilldown into SmokerStat in schema xmlife2_20_01_xsd Drilldown into TobaccoFree in schema xmlife2_20_01_xsd Drilldown into TobaccoType in schema xmlife2_20_01_xsd Drilldown into NetSavingsAmt in schema xmlife2_20_01_xsd Drilldown into NetIncomeAmt in schema xmlife2_20_01_xsd Drilldown into EstGrossAnnualOtherIncome in schema xmlife2_20_01_xsd Drilldown into EstSalary in schema xmlife2_20_01_xsd Drilldown into EstMortalityDate in schema xmlife2_20_01_xsd Drilldown into EstRetireDate in schema xmlife2_20_01_xsd Drilldown into OccupationType in schema xmlife2_20_01_xsd Drilldown into OccupClass in schema xmlife2_20_01_xsd Drilldown into Citizenship in schema xmlife2_20_01_xsd Drilldown into Age in schema xmlife2_20_01_xsd Drilldown into PassportNo in schema xmlife2_20_01_xsd Drilldown into HairColor in schema xmlife2_20_01_xsd Drilldown into EyeColor in schema xmlife2_20_01_xsd Drilldown into EducationType in schema xmlife2_20_01_xsd Drilldown into DOBEstimated in schema xmlife2_20_01_xsd Drilldown into BirthDate in schema xmlife2_20_01_xsd Drilldown into Gender in schema xmlife2_20_01_xsd Drilldown into MarStat in schema xmlife2_20_01_xsd Drilldown into Occupation in schema xmlife2_20_01_xsd Drilldown into Title in schema xmlife2_20_01_xsd Drilldown into Suffix in schema xmlife2_20_01_xsd Drilldown into Prefix in schema xmlife2_20_01_xsd Drilldown into Initials in schema xmlife2_20_01_xsd Drilldown into NickName in schema xmlife2_20_01_xsd Drilldown into LastName in schema xmlife2_20_01_xsd Drilldown into MiddleName in schema xmlife2_20_01_xsd Drilldown into FirstName in schema xmlife2_20_01_xsd Drilldown into PersonSysKey in schema xmlife2_20_01_xsd Drilldown into PersonKey in schema xmlife2_20_01_xsd Drilldown into DataRep in schema xmlife2_20_01_xsd Drilldown into id in schema xmlife2_20_01_xsdXSD Diagram of Person_Type in schema xmlife2_20_01_xsd (Acord - Life, Annuity & Health Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="Person_Type">
    <xsd:sequence>
        <xsd:element ref="PersonKey" minOccurs="0" />
        <xsd:element ref="PersonSysKey" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="FirstName" minOccurs="0" />
        <xsd:element ref="MiddleName" minOccurs="0" />
        <xsd:element ref="LastName" minOccurs="0" />
        <xsd:element ref="NickName" minOccurs="0" />
        <xsd:element ref="Initials" minOccurs="0" />
        <xsd:element ref="Prefix" minOccurs="0" />
        <xsd:element ref="Suffix" minOccurs="0" />
        <xsd:element ref="Title" minOccurs="0" />
        <xsd:element ref="Occupation" minOccurs="0" />
        <xsd:element ref="MarStat" minOccurs="0" />
        <xsd:element ref="Gender" minOccurs="0" />
        <xsd:element ref="BirthDate" minOccurs="0" />
        <xsd:element ref="DOBEstimated" minOccurs="0" />
        <xsd:element ref="EducationType" minOccurs="0" />
        <xsd:element ref="EyeColor" minOccurs="0" />
        <xsd:element ref="HairColor" minOccurs="0" />
        <xsd:element ref="PassportNo" minOccurs="0" />
        <xsd:element ref="Age" minOccurs="0" />
        <xsd:element ref="Citizenship" minOccurs="0" />
        <xsd:element ref="OccupClass" minOccurs="0" />
        <xsd:element ref="OccupationType" minOccurs="0" />
        <xsd:element ref="EstRetireDate" minOccurs="0" />
        <xsd:element ref="EstMortalityDate" minOccurs="0" />
        <xsd:element ref="EstSalary" minOccurs="0" />
        <xsd:element ref="EstGrossAnnualOtherIncome" minOccurs="0" />
        <xsd:element ref="NetIncomeAmt" minOccurs="0" />
        <xsd:element ref="NetSavingsAmt" minOccurs="0" />
        <xsd:element ref="TobaccoType" minOccurs="0" />
        <xsd:element ref="TobaccoFree" minOccurs="0" />
        <xsd:element ref="SmokerStat" minOccurs="0" />
        <xsd:element ref="SmokingFrequencyMode" minOccurs="0" />
        <xsd:element ref="SmokingFrequencyNumber" minOccurs="0" />
        <xsd:element ref="Height" minOccurs="0" />
        <xsd:element ref="Height2" minOccurs="0" />
        <xsd:element ref="Weight" minOccurs="0" />
        <xsd:element ref="Weight2" minOccurs="0" />
        <xsd:element ref="DriversLicenseNum" minOccurs="0" />
        <xsd:element ref="NoDriversLicenseInd" minOccurs="0" />
        <xsd:element ref="NoDriversLicenseReason" minOccurs="0" />
        <xsd:element ref="DriversLicenseState" minOccurs="0" />
        <xsd:element ref="DriversLicenseCountry" minOccurs="0" />
        <xsd:element ref="DriversLicenseStatus" minOccurs="0" />
        <xsd:element ref="IncomeInfoFromPartyInd" minOccurs="0" />
        <xsd:element ref="BirthCountry" minOccurs="0" />
        <xsd:element ref="BirthJurisdiction" minOccurs="0" />
        <xsd:element ref="BirthJurisdictionTC" minOccurs="0" />
        <xsd:element ref="BirthCity" minOccurs="0" />
        <xsd:element ref="GovtImmigrationNo" minOccurs="0" />
        <xsd:element ref="ImmigrationStatus" minOccurs="0" />
        <xsd:element ref="ImmigrationEntryDate" minOccurs="0" />
        <xsd:element ref="AlternateTaxID" minOccurs="0" />
        <xsd:element ref="AlternateTaxIDTC" minOccurs="0" />
        <xsd:element ref="VisaClassType" minOccurs="0" />
        <xsd:element ref="VisaDetails" minOccurs="0" />
        <xsd:element ref="VisaExpDate" minOccurs="0" />
        <xsd:element ref="VisaNationOfOrigin" minOccurs="0" />
        <xsd:element ref="GuestCountry" minOccurs="0" />
        <xsd:element ref="GuestLengthOfStayYears" minOccurs="0" />
        <xsd:element ref="GuestLengthOfStayMonths" minOccurs="0" />
        <xsd:element ref="GuestLengthOfStayDays" minOccurs="0" />
        <xsd:element ref="RestrictionInd" minOccurs="0" />
        <xsd:element ref="RestrictionReason" minOccurs="0" />
        <xsd:element ref="ASCOCode" minOccurs="0" />
        <xsd:element ref="WorkExperienceTravel" minOccurs="0" />
        <xsd:element ref="WorkExperienceManual" minOccurs="0" />
        <xsd:element ref="WorkExperienceAdmin" minOccurs="0" />
        <xsd:element ref="WorkExperienceSupervisoryManual" minOccurs="0" />
        <xsd:element ref="WorkExperienceSupervisoryAdmin" minOccurs="0" />
        <xsd:element ref="HighestEducationLevel" minOccurs="0" />
        <xsd:element ref="ProofOfAgeInd" minOccurs="0" />
        <xsd:element ref="MortalityConfirmDate" minOccurs="0" />
        <xsd:element ref="DeathCountry" minOccurs="0" />
        <xsd:element ref="DeathJurisdictionTC" minOccurs="0" />
        <xsd:element ref="EthnicType" minOccurs="0" />
        <xsd:element ref="DriversLicenseIssueDate" minOccurs="0" />
        <xsd:element ref="DriversLicenseExpDate" minOccurs="0" />
        <xsd:element ref="DriversLicenseIssueAgency" minOccurs="0" />
        <xsd:element ref="NonResidentAlienInd" minOccurs="0" />
        <xsd:element ref="Education" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="CauseOfDeath" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="KeyedValue" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="OLifEExtension" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="id" type="xsd:ID" />
    <xsd:attribute name="DataRep" type="DATAREP_TYPES" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PersonKey nsA:PersonKey 0 (1)
PersonSysKey nsA:PersonSysKey 0 unbounded
FirstName nsA:FirstName 0 (1)
MiddleName nsA:MiddleName 0 (1)
LastName nsA:LastName 0 (1)
NickName nsA:NickName 0 (1)
Initials nsA:Initials 0 (1)
Prefix nsA:Prefix 0 (1)
Suffix nsA:Suffix 0 (1)
Title nsA:Title 0 (1)
Occupation nsA:Occupation 0 (1)
MarStat nsA:MarStat 0 (1)
Gender nsA:Gender 0 (1)
BirthDate nsA:BirthDate 0 (1)
DOBEstimated nsA:DOBEstimated 0 (1)
EducationType nsA:EducationType 0 (1)
EyeColor nsA:EyeColor 0 (1)
HairColor nsA:HairColor 0 (1)
PassportNo nsA:PassportNo 0 (1)
Age nsA:Age 0 (1)
Citizenship nsA:Citizenship 0 (1)
OccupClass nsA:OccupClass 0 (1)
OccupationType nsA:OccupationType 0 (1)
EstRetireDate nsA:EstRetireDate 0 (1)
EstMortalityDate nsA:EstMortalityDate 0 (1)
EstSalary nsA:EstSalary 0 (1)
EstGrossAnnualOtherIncome nsA:EstGrossAnnualOtherIncome 0 (1)
NetIncomeAmt nsA:NetIncomeAmt 0 (1)
NetSavingsAmt nsA:NetSavingsAmt 0 (1)
TobaccoType nsA:TobaccoType 0 (1)
TobaccoFree nsA:TobaccoFree 0 (1)
SmokerStat nsA:SmokerStat 0 (1)
SmokingFrequencyMode nsA:SmokingFrequencyMode 0 (1)
SmokingFrequencyNumber nsA:SmokingFrequencyNumber 0 (1)
Height nsA:Height 0 (1)
Height2 nsA:Height2 0 (1)
Weight nsA:Weight 0 (1)
Weight2 nsA:Weight2 0 (1)
DriversLicenseNum nsA:DriversLicenseNum 0 (1)
NoDriversLicenseInd nsA:NoDriversLicenseInd 0 (1)
NoDriversLicenseReason nsA:NoDriversLicenseReason 0 (1)
DriversLicenseState nsA:DriversLicenseState 0 (1)
DriversLicenseCountry nsA:DriversLicenseCountry 0 (1)
DriversLicenseStatus nsA:DriversLicenseStatus 0 (1)
IncomeInfoFromPartyInd nsA:IncomeInfoFromPartyInd 0 (1)
BirthCountry nsA:BirthCountry 0 (1)
BirthJurisdiction nsA:BirthJurisdiction 0 (1)
BirthJurisdictionTC nsA:BirthJurisdictionTC 0 (1)
BirthCity nsA:BirthCity 0 (1)
GovtImmigrationNo nsA:GovtImmigrationNo 0 (1)
ImmigrationStatus nsA:ImmigrationStatus 0 (1)
ImmigrationEntryDate nsA:ImmigrationEntryDate 0 (1)
AlternateTaxID nsA:AlternateTaxID 0 (1)
AlternateTaxIDTC nsA:AlternateTaxIDTC 0 (1)
VisaClassType nsA:VisaClassType 0 (1)
VisaDetails nsA:VisaDetails 0 (1)
VisaExpDate nsA:VisaExpDate 0 (1)
VisaNationOfOrigin nsA:VisaNationOfOrigin 0 (1)
GuestCountry nsA:GuestCountry 0 (1)
GuestLengthOfStayYears nsA:GuestLengthOfStayYears 0 (1)
GuestLengthOfStayMonths nsA:GuestLengthOfStayMonths 0 (1)
GuestLengthOfStayDays nsA:GuestLengthOfStayDays 0 (1)
RestrictionInd nsA:RestrictionInd 0 (1)
RestrictionReason nsA:RestrictionReason 0 (1)
ASCOCode nsA:ASCOCode 0 (1)
WorkExperienceTravel nsA:WorkExperienceTravel 0 (1)
WorkExperienceManual nsA:WorkExperienceManual 0 (1)
WorkExperienceAdmin nsA:WorkExperienceAdmin 0 (1)
WorkExperienceSupervisoryManual nsA:WorkExperienceSupervisoryManual 0 (1)
WorkExperienceSupervisoryAdmin nsA:WorkExperienceSupervisoryAdmin 0 (1)
HighestEducationLevel nsA:HighestEducationLevel 0 (1)
ProofOfAgeInd nsA:ProofOfAgeInd 0 (1)
MortalityConfirmDate nsA:MortalityConfirmDate 0 (1)
DeathCountry nsA:DeathCountry 0 (1)
DeathJurisdictionTC nsA:DeathJurisdictionTC 0 (1)
EthnicType nsA:EthnicType 0 (1)
DriversLicenseIssueDate nsA:DriversLicenseIssueDate 0 (1)
DriversLicenseExpDate nsA:DriversLicenseExpDate 0 (1)
DriversLicenseIssueAgency nsA:DriversLicenseIssueAgency 0 (1)
NonResidentAlienInd nsA:NonResidentAlienInd 0 (1)
Education nsA:Education 0 unbounded
CauseOfDeath nsA:CauseOfDeath 0 unbounded
KeyedValue nsA:KeyedValue 0 unbounded
OLifEExtension nsA:OLifEExtension 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
DataRep nsA:DataRep (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:Person
