Documentation for Acord - Life, Annuity & Health Standards Program
Definition Type: ComplexType
Name: ScheduledChange_Type
Namespace: http://ACORD.org/Standards/Life/2
Containing Schema: XMLife2.20.01.xsd
Abstract

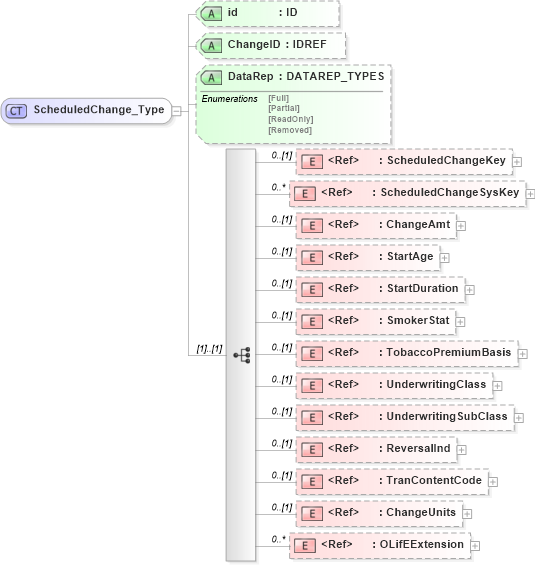

Collapse XSD Schema Diagram:
Drilldown into OLifEExtension in schema xlifebase2_20_01_xsd Drilldown into ChangeUnits in schema xmlife2_20_01_xsd Drilldown into TranContentCode in schema xmlife2_20_01_xsd Drilldown into ReversalInd in schema xmlife2_20_01_xsd Drilldown into UnderwritingSubClass in schema xmlife2_20_01_xsd Drilldown into UnderwritingClass in schema xmlife2_20_01_xsd Drilldown into TobaccoPremiumBasis in schema xmlife2_20_01_xsd Drilldown into SmokerStat in schema xmlife2_20_01_xsd Drilldown into StartDuration in schema xmlife2_20_01_xsd Drilldown into StartAge in schema xmlife2_20_01_xsd Drilldown into ChangeAmt in schema xmlife2_20_01_xsd Drilldown into ScheduledChangeSysKey in schema xmlife2_20_01_xsd Drilldown into ScheduledChangeKey in schema xmlife2_20_01_xsd Drilldown into DataRep in schema xmlife2_20_01_xsd Drilldown into ChangeID in schema xmlife2_20_01_xsd Drilldown into id in schema xmlife2_20_01_xsdXSD Diagram of ScheduledChange_Type in schema xmlife2_20_01_xsd (Acord - Life, Annuity & Health Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="ScheduledChange_Type">
    <xsd:sequence>
        <xsd:element ref="ScheduledChangeKey" minOccurs="0" />
        <xsd:element ref="ScheduledChangeSysKey" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ChangeAmt" minOccurs="0" />
        <xsd:element ref="StartAge" minOccurs="0" />
        <xsd:element ref="StartDuration" minOccurs="0" />
        <xsd:element ref="SmokerStat" minOccurs="0" />
        <xsd:element ref="TobaccoPremiumBasis" minOccurs="0" />
        <xsd:element ref="UnderwritingClass" minOccurs="0" />
        <xsd:element ref="UnderwritingSubClass" minOccurs="0" />
        <xsd:element ref="ReversalInd" minOccurs="0" />
        <xsd:element ref="TranContentCode" minOccurs="0" />
        <xsd:element ref="ChangeUnits" minOccurs="0" />
        <xsd:element ref="OLifEExtension" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="id" type="xsd:ID" />
    <xsd:attribute name="ChangeID" type="xsd:IDREF" />
    <xsd:attribute name="DataRep" type="DATAREP_TYPES" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ScheduledChangeKey nsA:ScheduledChangeKey 0 (1)
ScheduledChangeSysKey nsA:ScheduledChangeSysKey 0 unbounded
ChangeAmt nsA:ChangeAmt 0 (1)
StartAge nsA:StartAge 0 (1)
StartDuration nsA:StartDuration 0 (1)
SmokerStat nsA:SmokerStat 0 (1)
TobaccoPremiumBasis nsA:TobaccoPremiumBasis 0 (1)
UnderwritingClass nsA:UnderwritingClass 0 (1)
UnderwritingSubClass nsA:UnderwritingSubClass 0 (1)
ReversalInd nsA:ReversalInd 0 (1)
TranContentCode nsA:TranContentCode 0 (1)
ChangeUnits nsA:ChangeUnits 0 (1)
OLifEExtension nsA:OLifEExtension 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
ChangeID nsA:ChangeID (Optional)
DataRep nsA:DataRep (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:ScheduledChange
