Documentation for Acord - Life, Annuity & Health Standards Program
Definition Type: ComplexType
Name: SignatureInfo_Type
Namespace: http://ACORD.org/Standards/Life/2
Containing Schema: XMLife2.20.01.xsd
Abstract

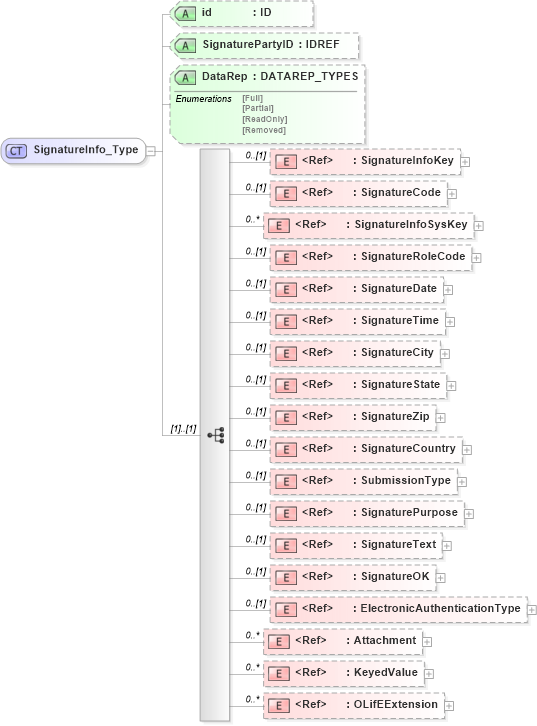

Collapse XSD Schema Diagram:
Drilldown into OLifEExtension in schema xlifebase2_20_01_xsd Drilldown into KeyedValue in schema xlifebase2_20_01_xsd Drilldown into Attachment in schema xmlife2_20_01_xsd Drilldown into ElectronicAuthenticationType in schema xmlife2_20_01_xsd Drilldown into SignatureOK in schema xmlife2_20_01_xsd Drilldown into SignatureText in schema xmlife2_20_01_xsd Drilldown into SignaturePurpose in schema xmlife2_20_01_xsd Drilldown into SubmissionType in schema xmlife2_20_01_xsd Drilldown into SignatureCountry in schema xmlife2_20_01_xsd Drilldown into SignatureZip in schema xmlife2_20_01_xsd Drilldown into SignatureState in schema xmlife2_20_01_xsd Drilldown into SignatureCity in schema xmlife2_20_01_xsd Drilldown into SignatureTime in schema xmlife2_20_01_xsd Drilldown into SignatureDate in schema xmlife2_20_01_xsd Drilldown into SignatureRoleCode in schema xmlife2_20_01_xsd Drilldown into SignatureInfoSysKey in schema xmlife2_20_01_xsd Drilldown into SignatureCode in schema xmlife2_20_01_xsd Drilldown into SignatureInfoKey in schema xmlife2_20_01_xsd Drilldown into DataRep in schema xmlife2_20_01_xsd Drilldown into SignaturePartyID in schema xmlife2_20_01_xsd Drilldown into id in schema xmlife2_20_01_xsdXSD Diagram of SignatureInfo_Type in schema xmlife2_20_01_xsd (Acord - Life, Annuity & Health Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="SignatureInfo_Type">
    <xsd:sequence>
        <xsd:element ref="SignatureInfoKey" minOccurs="0" />
        <xsd:element ref="SignatureCode" minOccurs="0" />
        <xsd:element ref="SignatureInfoSysKey" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="SignatureRoleCode" minOccurs="0" />
        <xsd:element ref="SignatureDate" minOccurs="0" />
        <xsd:element ref="SignatureTime" minOccurs="0" />
        <xsd:element ref="SignatureCity" minOccurs="0" />
        <xsd:element ref="SignatureState" minOccurs="0" />
        <xsd:element ref="SignatureZip" minOccurs="0" />
        <xsd:element ref="SignatureCountry" minOccurs="0" />
        <xsd:element ref="SubmissionType" minOccurs="0" />
        <xsd:element ref="SignaturePurpose" minOccurs="0" />
        <xsd:element ref="SignatureText" minOccurs="0" />
        <xsd:element ref="SignatureOK" minOccurs="0" />
        <xsd:element ref="ElectronicAuthenticationType" minOccurs="0" />
        <xsd:element ref="Attachment" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="KeyedValue" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="OLifEExtension" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="id" type="xsd:ID" />
    <xsd:attribute name="SignaturePartyID" type="xsd:IDREF" />
    <xsd:attribute name="DataRep" type="DATAREP_TYPES" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SignatureInfoKey nsA:SignatureInfoKey 0 (1)
SignatureCode nsA:SignatureCode 0 (1)
SignatureInfoSysKey nsA:SignatureInfoSysKey 0 unbounded
SignatureRoleCode nsA:SignatureRoleCode 0 (1)
SignatureDate nsA:SignatureDate 0 (1)
SignatureTime nsA:SignatureTime 0 (1)
SignatureCity nsA:SignatureCity 0 (1)
SignatureState nsA:SignatureState 0 (1)
SignatureZip nsA:SignatureZip 0 (1)
SignatureCountry nsA:SignatureCountry 0 (1)
SubmissionType nsA:SubmissionType 0 (1)
SignaturePurpose nsA:SignaturePurpose 0 (1)
SignatureText nsA:SignatureText 0 (1)
SignatureOK nsA:SignatureOK 0 (1)
ElectronicAuthenticationType nsA:ElectronicAuthenticationType 0 (1)
Attachment nsA:Attachment 0 unbounded
KeyedValue nsA:KeyedValue 0 unbounded
OLifEExtension nsA:OLifEExtension 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
SignaturePartyID nsA:SignaturePartyID (Optional)
DataRep nsA:DataRep (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:SignatureInfo
