Documentation for Acord - Life, Annuity & Health Standards Program
Definition Type: ComplexType
Name: SitusInfo_Type
Namespace: http://ACORD.org/Standards/Life/2
Containing Schema: XMLife2.20.01.xsd
Abstract

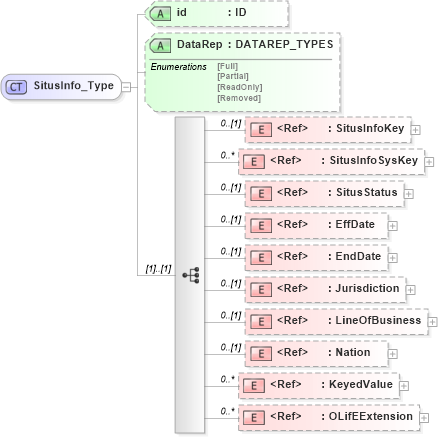

Collapse XSD Schema Diagram:
Drilldown into OLifEExtension in schema xlifebase2_20_01_xsd Drilldown into KeyedValue in schema xlifebase2_20_01_xsd Drilldown into Nation in schema xlifebase2_20_01_xsd Drilldown into LineOfBusiness in schema xmlife2_20_01_xsd Drilldown into Jurisdiction in schema xlifebase2_20_01_xsd Drilldown into EndDate in schema xlifebase2_20_01_xsd Drilldown into EffDate in schema xlifebase2_20_01_xsd Drilldown into SitusStatus in schema xmlife2_20_01_xsd Drilldown into SitusInfoSysKey in schema xmlife2_20_01_xsd Drilldown into SitusInfoKey in schema xmlife2_20_01_xsd Drilldown into DataRep in schema xmlife2_20_01_xsd Drilldown into id in schema xmlife2_20_01_xsdXSD Diagram of SitusInfo_Type in schema xmlife2_20_01_xsd (Acord - Life, Annuity & Health Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="SitusInfo_Type">
    <xsd:sequence>
        <xsd:element ref="SitusInfoKey" minOccurs="0" />
        <xsd:element ref="SitusInfoSysKey" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="SitusStatus" minOccurs="0" />
        <xsd:element ref="EffDate" minOccurs="0" />
        <xsd:element ref="EndDate" minOccurs="0" />
        <xsd:element ref="Jurisdiction" minOccurs="0" />
        <xsd:element ref="LineOfBusiness" minOccurs="0" />
        <xsd:element ref="Nation" minOccurs="0" />
        <xsd:element ref="KeyedValue" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="OLifEExtension" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="id" type="xsd:ID" />
    <xsd:attribute name="DataRep" type="DATAREP_TYPES" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SitusInfoKey nsA:SitusInfoKey 0 (1)
SitusInfoSysKey nsA:SitusInfoSysKey 0 unbounded
SitusStatus nsA:SitusStatus 0 (1)
EffDate nsA:EffDate 0 (1)
EndDate nsA:EndDate 0 (1)
Jurisdiction nsA:Jurisdiction 0 (1)
LineOfBusiness nsA:LineOfBusiness 0 (1)
Nation nsA:Nation 0 (1)
KeyedValue nsA:KeyedValue 0 unbounded
OLifEExtension nsA:OLifEExtension 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
DataRep nsA:DataRep (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:SitusInfo
