Documentation for Acord - Life, Annuity & Health Standards Program
Definition Type: ComplexType
Name: SubstandardRating_Type
Namespace: http://ACORD.org/Standards/Life/2
Containing Schema: XMLife2.20.01.xsd
Abstract

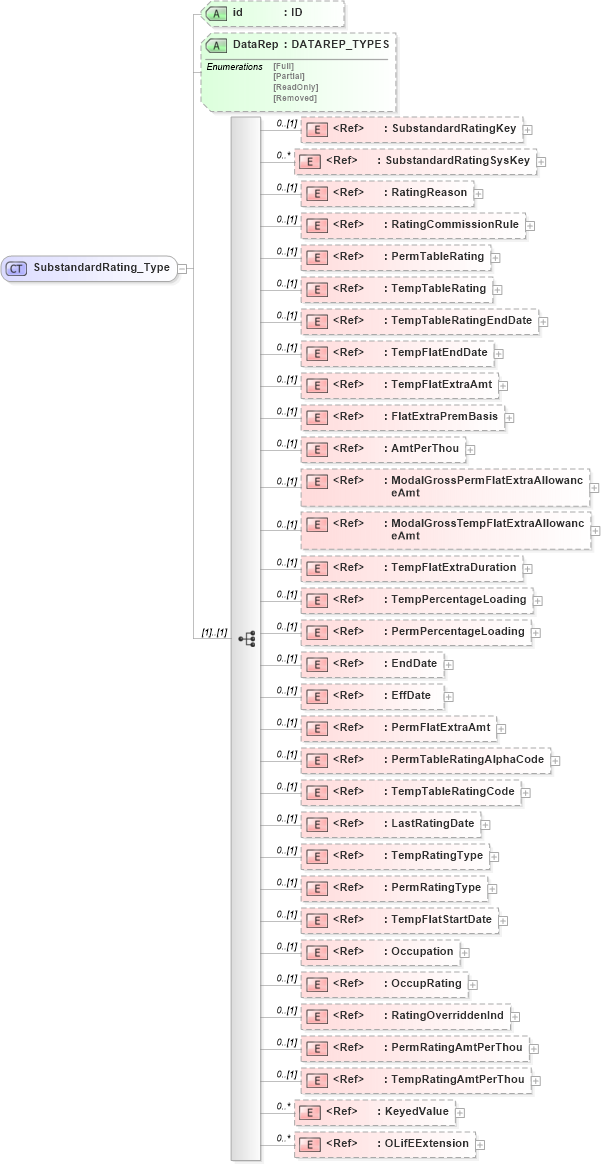

Collapse XSD Schema Diagram:
Drilldown into OLifEExtension in schema xlifebase2_20_01_xsd Drilldown into KeyedValue in schema xlifebase2_20_01_xsd Drilldown into TempRatingAmtPerThou in schema xmlife2_20_01_xsd Drilldown into PermRatingAmtPerThou in schema xmlife2_20_01_xsd Drilldown into RatingOverriddenInd in schema xmlife2_20_01_xsd Drilldown into OccupRating in schema xmlife2_20_01_xsd Drilldown into Occupation in schema xmlife2_20_01_xsd Drilldown into TempFlatStartDate in schema xmlife2_20_01_xsd Drilldown into PermRatingType in schema xmlife2_20_01_xsd Drilldown into TempRatingType in schema xmlife2_20_01_xsd Drilldown into LastRatingDate in schema xmlife2_20_01_xsd Drilldown into TempTableRatingCode in schema xmlife2_20_01_xsd Drilldown into PermTableRatingAlphaCode in schema xmlife2_20_01_xsd Drilldown into PermFlatExtraAmt in schema xmlife2_20_01_xsd Drilldown into EffDate in schema xlifebase2_20_01_xsd Drilldown into EndDate in schema xlifebase2_20_01_xsd Drilldown into PermPercentageLoading in schema xmlife2_20_01_xsd Drilldown into TempPercentageLoading in schema xmlife2_20_01_xsd Drilldown into TempFlatExtraDuration in schema xmlife2_20_01_xsd Drilldown into ModalGrossTempFlatExtraAllowanceAmt in schema xmlife2_20_01_xsd Drilldown into ModalGrossPermFlatExtraAllowanceAmt in schema xmlife2_20_01_xsd Drilldown into AmtPerThou in schema xmlife2_20_01_xsd Drilldown into FlatExtraPremBasis in schema xmlife2_20_01_xsd Drilldown into TempFlatExtraAmt in schema xmlife2_20_01_xsd Drilldown into TempFlatEndDate in schema xmlife2_20_01_xsd Drilldown into TempTableRatingEndDate in schema xmlife2_20_01_xsd Drilldown into TempTableRating in schema xmlife2_20_01_xsd Drilldown into PermTableRating in schema xmlife2_20_01_xsd Drilldown into RatingCommissionRule in schema xmlife2_20_01_xsd Drilldown into RatingReason in schema xmlife2_20_01_xsd Drilldown into SubstandardRatingSysKey in schema xmlife2_20_01_xsd Drilldown into SubstandardRatingKey in schema xmlife2_20_01_xsd Drilldown into DataRep in schema xmlife2_20_01_xsd Drilldown into id in schema xmlife2_20_01_xsdXSD Diagram of SubstandardRating_Type in schema xmlife2_20_01_xsd (Acord - Life, Annuity & Health Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="SubstandardRating_Type">
    <xsd:sequence>
        <xsd:element ref="SubstandardRatingKey" minOccurs="0" />
        <xsd:element ref="SubstandardRatingSysKey" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="RatingReason" minOccurs="0" />
        <xsd:element ref="RatingCommissionRule" minOccurs="0" />
        <xsd:element ref="PermTableRating" minOccurs="0" />
        <xsd:element ref="TempTableRating" minOccurs="0" />
        <xsd:element ref="TempTableRatingEndDate" minOccurs="0" />
        <xsd:element ref="TempFlatEndDate" minOccurs="0" />
        <xsd:element ref="TempFlatExtraAmt" minOccurs="0" />
        <xsd:element ref="FlatExtraPremBasis" minOccurs="0" />
        <xsd:element ref="AmtPerThou" minOccurs="0" />
        <xsd:element ref="ModalGrossPermFlatExtraAllowanceAmt" minOccurs="0" />
        <xsd:element ref="ModalGrossTempFlatExtraAllowanceAmt" minOccurs="0" />
        <xsd:element ref="TempFlatExtraDuration" minOccurs="0" />
        <xsd:element ref="TempPercentageLoading" minOccurs="0" />
        <xsd:element ref="PermPercentageLoading" minOccurs="0" />
        <xsd:element ref="EndDate" minOccurs="0" />
        <xsd:element ref="EffDate" minOccurs="0" />
        <xsd:element ref="PermFlatExtraAmt" minOccurs="0" />
        <xsd:element ref="PermTableRatingAlphaCode" minOccurs="0" />
        <xsd:element ref="TempTableRatingCode" minOccurs="0" />
        <xsd:element ref="LastRatingDate" minOccurs="0" />
        <xsd:element ref="TempRatingType" minOccurs="0" />
        <xsd:element ref="PermRatingType" minOccurs="0" />
        <xsd:element ref="TempFlatStartDate" minOccurs="0" />
        <xsd:element ref="Occupation" minOccurs="0" />
        <xsd:element ref="OccupRating" minOccurs="0" />
        <xsd:element ref="RatingOverriddenInd" minOccurs="0" />
        <xsd:element ref="PermRatingAmtPerThou" minOccurs="0" />
        <xsd:element ref="TempRatingAmtPerThou" minOccurs="0" />
        <xsd:element ref="KeyedValue" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="OLifEExtension" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="id" type="xsd:ID" />
    <xsd:attribute name="DataRep" type="DATAREP_TYPES" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SubstandardRatingKey nsA:SubstandardRatingKey 0 (1)
SubstandardRatingSysKey nsA:SubstandardRatingSysKey 0 unbounded
RatingReason nsA:RatingReason 0 (1)
RatingCommissionRule nsA:RatingCommissionRule 0 (1)
PermTableRating nsA:PermTableRating 0 (1)
TempTableRating nsA:TempTableRating 0 (1)
TempTableRatingEndDate nsA:TempTableRatingEndDate 0 (1)
TempFlatEndDate nsA:TempFlatEndDate 0 (1)
TempFlatExtraAmt nsA:TempFlatExtraAmt 0 (1)
FlatExtraPremBasis nsA:FlatExtraPremBasis 0 (1)
AmtPerThou nsA:AmtPerThou 0 (1)
ModalGrossPermFlatExtraAllowanceAmt nsA:ModalGrossPermFlatExtraAllowanceAmt 0 (1)
ModalGrossTempFlatExtraAllowanceAmt nsA:ModalGrossTempFlatExtraAllowanceAmt 0 (1)
TempFlatExtraDuration nsA:TempFlatExtraDuration 0 (1)
TempPercentageLoading nsA:TempPercentageLoading 0 (1)
PermPercentageLoading nsA:PermPercentageLoading 0 (1)
EndDate nsA:EndDate 0 (1)
EffDate nsA:EffDate 0 (1)
PermFlatExtraAmt nsA:PermFlatExtraAmt 0 (1)
PermTableRatingAlphaCode nsA:PermTableRatingAlphaCode 0 (1)
TempTableRatingCode nsA:TempTableRatingCode 0 (1)
LastRatingDate nsA:LastRatingDate 0 (1)
TempRatingType nsA:TempRatingType 0 (1)
PermRatingType nsA:PermRatingType 0 (1)
TempFlatStartDate nsA:TempFlatStartDate 0 (1)
Occupation nsA:Occupation 0 (1)
OccupRating nsA:OccupRating 0 (1)
RatingOverriddenInd nsA:RatingOverriddenInd 0 (1)
PermRatingAmtPerThou nsA:PermRatingAmtPerThou 0 (1)
TempRatingAmtPerThou nsA:TempRatingAmtPerThou 0 (1)
KeyedValue nsA:KeyedValue 0 unbounded
OLifEExtension nsA:OLifEExtension 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
DataRep nsA:DataRep (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:SubstandardRating
