Documentation for Acord - Life, Annuity & Health Standards Program
Definition Type: ComplexType
Name: TXLifeRequest_Type
Namespace: http://ACORD.org/Standards/Life/2
Containing Schema: TXLife2.20.01.xsd
Abstract

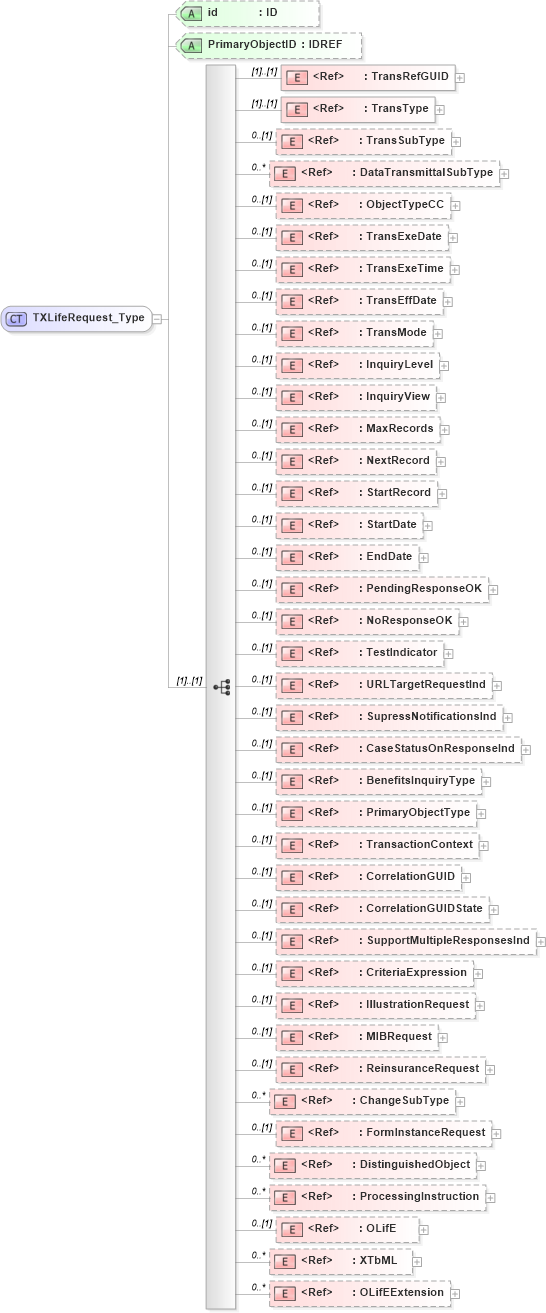

Collapse XSD Schema Diagram:
Drilldown into OLifEExtension in schema xlifebase2_20_01_xsd Drilldown into XTbML in schema xtbml2_20_01_xsd Drilldown into OLifE in schema xmlife2_20_01_xsd Drilldown into ProcessingInstruction in schema txlife2_20_01_xsd Drilldown into DistinguishedObject in schema txlife2_20_01_xsd Drilldown into FormInstanceRequest in schema txlife2_20_01_xsd Drilldown into ChangeSubType in schema txlife2_20_01_xsd Drilldown into ReinsuranceRequest in schema txlife2_20_01_xsd Drilldown into MIBRequest in schema txlife2_20_01_xsd Drilldown into IllustrationRequest in schema txlife2_20_01_xsd Drilldown into CriteriaExpression in schema txlife2_20_01_xsd Drilldown into SupportMultipleResponsesInd in schema txlife2_20_01_xsd Drilldown into CorrelationGUIDState in schema txlife2_20_01_xsd Drilldown into CorrelationGUID in schema txlife2_20_01_xsd Drilldown into TransactionContext in schema txlife2_20_01_xsd Drilldown into PrimaryObjectType in schema txlife2_20_01_xsd Drilldown into BenefitsInquiryType in schema txlife2_20_01_xsd Drilldown into CaseStatusOnResponseInd in schema txlife2_20_01_xsd Drilldown into SupressNotificationsInd in schema txlife2_20_01_xsd Drilldown into URLTargetRequestInd in schema txlife2_20_01_xsd Drilldown into TestIndicator in schema txlife2_20_01_xsd Drilldown into NoResponseOK in schema txlife2_20_01_xsd Drilldown into PendingResponseOK in schema txlife2_20_01_xsd Drilldown into EndDate in schema xlifebase2_20_01_xsd Drilldown into StartDate in schema xlifebase2_20_01_xsd Drilldown into StartRecord in schema txlife2_20_01_xsd Drilldown into NextRecord in schema txlife2_20_01_xsd Drilldown into MaxRecords in schema txlife2_20_01_xsd Drilldown into InquiryView in schema txlife2_20_01_xsd Drilldown into InquiryLevel in schema txlife2_20_01_xsd Drilldown into TransMode in schema txlife2_20_01_xsd Drilldown into TransEffDate in schema txlife2_20_01_xsd Drilldown into TransExeTime in schema txlife2_20_01_xsd Drilldown into TransExeDate in schema txlife2_20_01_xsd Drilldown into ObjectTypeCC in schema txlife2_20_01_xsd Drilldown into DataTransmittalSubType in schema txlife2_20_01_xsd Drilldown into TransSubType in schema xlifebase2_20_01_xsd Drilldown into TransType in schema xmlife2_20_01_xsd Drilldown into TransRefGUID in schema txlife2_20_01_xsd Drilldown into PrimaryObjectID in schema txlife2_20_01_xsd Drilldown into id in schema txlife2_20_01_xsdXSD Diagram of TXLifeRequest_Type in schema txlife2_20_01_xsd (Acord - Life, Annuity & Health Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="TXLifeRequest_Type">
    <xsd:sequence>
        <xsd:element ref="TransRefGUID" />
        <xsd:element ref="TransType" />
        <xsd:element ref="TransSubType" minOccurs="0" />
        <xsd:element ref="DataTransmittalSubType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ObjectTypeCC" minOccurs="0" />
        <xsd:element ref="TransExeDate" minOccurs="0" />
        <xsd:element ref="TransExeTime" minOccurs="0" />
        <xsd:element ref="TransEffDate" minOccurs="0" />
        <xsd:element ref="TransMode" minOccurs="0" />
        <xsd:element ref="InquiryLevel" minOccurs="0" />
        <xsd:element ref="InquiryView" minOccurs="0" />
        <xsd:element ref="MaxRecords" minOccurs="0" />
        <xsd:element ref="NextRecord" minOccurs="0" />
        <xsd:element ref="StartRecord" minOccurs="0" />
        <xsd:element ref="StartDate" minOccurs="0" />
        <xsd:element ref="EndDate" minOccurs="0" />
        <xsd:element ref="PendingResponseOK" minOccurs="0" />
        <xsd:element ref="NoResponseOK" minOccurs="0" />
        <xsd:element ref="TestIndicator" minOccurs="0" />
        <xsd:element ref="URLTargetRequestInd" minOccurs="0" />
        <xsd:element ref="SupressNotificationsInd" minOccurs="0" />
        <xsd:element ref="CaseStatusOnResponseInd" minOccurs="0" />
        <xsd:element ref="BenefitsInquiryType" minOccurs="0" />
        <xsd:element ref="PrimaryObjectType" minOccurs="0" />
        <xsd:element ref="TransactionContext" minOccurs="0" />
        <xsd:element ref="CorrelationGUID" minOccurs="0" />
        <xsd:element ref="CorrelationGUIDState" minOccurs="0" />
        <xsd:element ref="SupportMultipleResponsesInd" minOccurs="0" />
        <xsd:element ref="CriteriaExpression" minOccurs="0" />
        <xsd:element ref="IllustrationRequest" minOccurs="0" />
        <xsd:element ref="MIBRequest" minOccurs="0" />
        <xsd:element ref="ReinsuranceRequest" minOccurs="0" />
        <xsd:element ref="ChangeSubType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="FormInstanceRequest" minOccurs="0" />
        <xsd:element ref="DistinguishedObject" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ProcessingInstruction" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="OLifE" minOccurs="0" />
        <xsd:element ref="XTbML" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="OLifEExtension" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="id" type="xsd:ID" />
    <xsd:attribute name="PrimaryObjectID" type="xsd:IDREF" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TransRefGUID nsA:TransRefGUID (1) (1)
TransType nsA:TransType (1) (1)
TransSubType nsA:TransSubType 0 (1)
DataTransmittalSubType nsA:DataTransmittalSubType 0 unbounded
ObjectTypeCC nsA:ObjectTypeCC 0 (1)
TransExeDate nsA:TransExeDate 0 (1)
TransExeTime nsA:TransExeTime 0 (1)
TransEffDate nsA:TransEffDate 0 (1)
TransMode nsA:TransMode 0 (1)
InquiryLevel nsA:InquiryLevel 0 (1)
InquiryView nsA:InquiryView 0 (1)
MaxRecords nsA:MaxRecords 0 (1)
NextRecord nsA:NextRecord 0 (1)
StartRecord nsA:StartRecord 0 (1)
StartDate nsA:StartDate 0 (1)
EndDate nsA:EndDate 0 (1)
PendingResponseOK nsA:PendingResponseOK 0 (1)
NoResponseOK nsA:NoResponseOK 0 (1)
TestIndicator nsA:TestIndicator 0 (1)
URLTargetRequestInd nsA:URLTargetRequestInd 0 (1)
SupressNotificationsInd nsA:SupressNotificationsInd 0 (1)
CaseStatusOnResponseInd nsA:CaseStatusOnResponseInd 0 (1)
BenefitsInquiryType nsA:BenefitsInquiryType 0 (1)
PrimaryObjectType nsA:PrimaryObjectType 0 (1)
TransactionContext nsA:TransactionContext 0 (1)
CorrelationGUID nsA:CorrelationGUID 0 (1)
CorrelationGUIDState nsA:CorrelationGUIDState 0 (1)
SupportMultipleResponsesInd nsA:SupportMultipleResponsesInd 0 (1)
CriteriaExpression nsA:CriteriaExpression 0 (1)
IllustrationRequest nsA:IllustrationRequest 0 (1)
MIBRequest nsA:MIBRequest 0 (1)
ReinsuranceRequest nsA:ReinsuranceRequest 0 (1)
ChangeSubType nsA:ChangeSubType 0 unbounded
FormInstanceRequest nsA:FormInstanceRequest 0 (1)
DistinguishedObject nsA:DistinguishedObject 0 unbounded
ProcessingInstruction nsA:ProcessingInstruction 0 unbounded
OLifE nsA:OLifE 0 (1)
XTbML nsA:XTbML 0 unbounded
OLifEExtension nsA:OLifEExtension 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
PrimaryObjectID nsA:PrimaryObjectID (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:TXLifeRequest
