Documentation for Acord - Life, Annuity & Health Standards Program
Definition Type: ComplexType
Name: UnderwritingResult_Type
Namespace: http://ACORD.org/Standards/Life/2
Containing Schema: XMLife2.20.01.xsd
Abstract

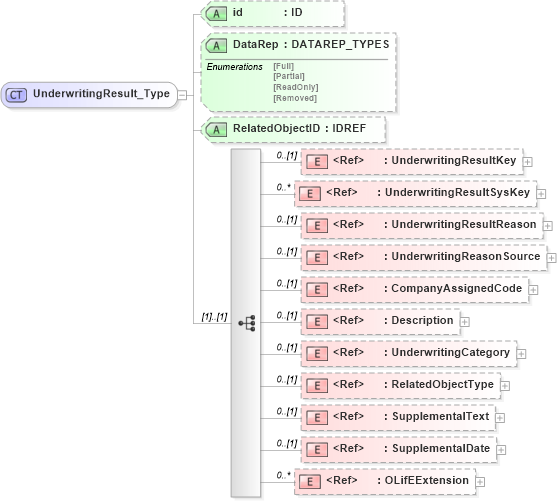

Collapse XSD Schema Diagram:
Drilldown into OLifEExtension in schema xlifebase2_20_01_xsd Drilldown into SupplementalDate in schema xmlife2_20_01_xsd Drilldown into SupplementalText in schema xmlife2_20_01_xsd Drilldown into RelatedObjectType in schema xmlife2_20_01_xsd Drilldown into UnderwritingCategory in schema xmlife2_20_01_xsd Drilldown into Description in schema xmlife2_20_01_xsd Drilldown into CompanyAssignedCode in schema xmlife2_20_01_xsd Drilldown into UnderwritingReasonSource in schema xmlife2_20_01_xsd Drilldown into UnderwritingResultReason in schema xmlife2_20_01_xsd Drilldown into UnderwritingResultSysKey in schema xmlife2_20_01_xsd Drilldown into UnderwritingResultKey in schema xmlife2_20_01_xsd Drilldown into RelatedObjectID in schema xmlife2_20_01_xsd Drilldown into DataRep in schema xmlife2_20_01_xsd Drilldown into id in schema xmlife2_20_01_xsdXSD Diagram of UnderwritingResult_Type in schema xmlife2_20_01_xsd (Acord - Life, Annuity & Health Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="UnderwritingResult_Type">
    <xsd:sequence>
        <xsd:element ref="UnderwritingResultKey" minOccurs="0" />
        <xsd:element ref="UnderwritingResultSysKey" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="UnderwritingResultReason" minOccurs="0" />
        <xsd:element ref="UnderwritingReasonSource" minOccurs="0" />
        <xsd:element ref="CompanyAssignedCode" minOccurs="0" />
        <xsd:element ref="Description" minOccurs="0" />
        <xsd:element ref="UnderwritingCategory" minOccurs="0" />
        <xsd:element ref="RelatedObjectType" minOccurs="0" />
        <xsd:element ref="SupplementalText" minOccurs="0" />
        <xsd:element ref="SupplementalDate" minOccurs="0" />
        <xsd:element ref="OLifEExtension" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="id" type="xsd:ID" />
    <xsd:attribute name="DataRep" type="DATAREP_TYPES" />
    <xsd:attribute name="RelatedObjectID" type="xsd:IDREF" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
UnderwritingResultKey nsA:UnderwritingResultKey 0 (1)
UnderwritingResultSysKey nsA:UnderwritingResultSysKey 0 unbounded
UnderwritingResultReason nsA:UnderwritingResultReason 0 (1)
UnderwritingReasonSource nsA:UnderwritingReasonSource 0 (1)
CompanyAssignedCode nsA:CompanyAssignedCode 0 (1)
Description nsA:Description 0 (1)
UnderwritingCategory nsA:UnderwritingCategory 0 (1)
RelatedObjectType nsA:RelatedObjectType 0 (1)
SupplementalText nsA:SupplementalText 0 (1)
SupplementalDate nsA:SupplementalDate 0 (1)
OLifEExtension nsA:OLifEExtension 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
DataRep nsA:DataRep (Optional)
RelatedObjectID nsA:RelatedObjectID (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:UnderwritingResult
