Documentation for Acord - Life, Annuity & Health Standards Program
Definition Type: ComplexType
Name: URL_Type
Namespace: http://ACORD.org/Standards/Life/2
Containing Schema: XMLife2.20.01.xsd
Abstract

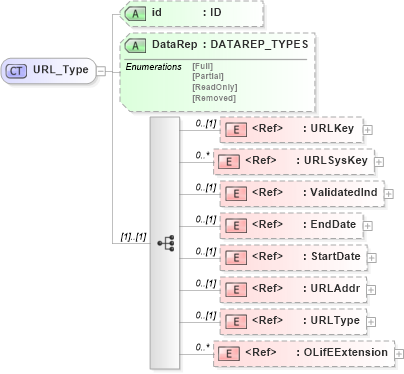

Collapse XSD Schema Diagram:
Drilldown into OLifEExtension in schema xlifebase2_20_01_xsd Drilldown into URLType in schema xmlife2_20_01_xsd Drilldown into URLAddr in schema xmlife2_20_01_xsd Drilldown into StartDate in schema xlifebase2_20_01_xsd Drilldown into EndDate in schema xlifebase2_20_01_xsd Drilldown into ValidatedInd in schema xmlife2_20_01_xsd Drilldown into URLSysKey in schema xmlife2_20_01_xsd Drilldown into URLKey in schema xmlife2_20_01_xsd Drilldown into DataRep in schema xmlife2_20_01_xsd Drilldown into id in schema xmlife2_20_01_xsdXSD Diagram of URL_Type in schema xmlife2_20_01_xsd (Acord - Life, Annuity & Health Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="URL_Type">
    <xsd:sequence>
        <xsd:element ref="URLKey" minOccurs="0" />
        <xsd:element ref="URLSysKey" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ValidatedInd" minOccurs="0" />
        <xsd:element ref="EndDate" minOccurs="0" />
        <xsd:element ref="StartDate" minOccurs="0" />
        <xsd:element ref="URLAddr" minOccurs="0" />
        <xsd:element ref="URLType" minOccurs="0" />
        <xsd:element ref="OLifEExtension" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="id" type="xsd:ID" />
    <xsd:attribute name="DataRep" type="DATAREP_TYPES" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
URLKey nsA:URLKey 0 (1)
URLSysKey nsA:URLSysKey 0 unbounded
ValidatedInd nsA:ValidatedInd 0 (1)
EndDate nsA:EndDate 0 (1)
StartDate nsA:StartDate 0 (1)
URLAddr nsA:URLAddr 0 (1)
URLType nsA:URLType 0 (1)
OLifEExtension nsA:OLifEExtension 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
DataRep nsA:DataRep (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:URL
