Documentation for AdsML
Definition Type: Group
Name: AdMaterialResponseModule
Namespace: http://www.adsml.org/adsmlmaterials/2.0
Containing Schema: AdsMLMaterials-2.0-PublicTypeLibrary-AS.xsd

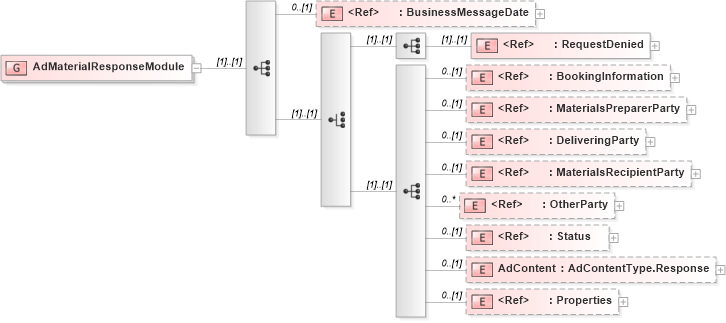

Collapse XSD Schema Diagram:
Drilldown into Properties in schema adsmltypelibrary-2_0-as_xsd Drilldown into AdContent in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into Status in schema adsmltypelibrary-2_0-as_xsd Drilldown into OtherParty in schema adsmltypelibrary-2_0-as_xsd Drilldown into MaterialsRecipientParty in schema adsmltypelibrary-2_0-as_xsd Drilldown into DeliveringParty in schema adsmltypelibrary-2_0-as_xsd Drilldown into MaterialsPreparerParty in schema adsmltypelibrary-2_0-as_xsd Drilldown into BookingInformation in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into RequestDenied in schema adsmltypelibrary-2_0-as_xsd Drilldown into BusinessMessageDate in schema adsmltypelibrary-2_0-as_xsdXSD Diagram of AdMaterialResponseModule in schema adsmlmaterials-2_0-publictypelibrary-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:group name="AdMaterialResponseModule">
    <xs:sequence>
        <xs:element ref="adsml:BusinessMessageDate" minOccurs="0" />
        <xs:choice>
            <xs:sequence>
                <xs:element ref="adsml:RequestDenied" />
            </xs:sequence>
            <xs:sequence>
                <xs:element ref="BookingInformation" minOccurs="0" />
                <xs:element ref="adsml:MaterialsPreparerParty" minOccurs="0" />
                <xs:element ref="adsml:DeliveringParty" minOccurs="0" />
                <xs:element ref="adsml:MaterialsRecipientParty" minOccurs="0" />
                <xs:element ref="adsml:OtherParty" minOccurs="0" maxOccurs="unbounded" />
                <xs:element ref="adsml:Status" minOccurs="0" />
                <xs:element name="AdContent" type="AdContentType.Response" minOccurs="0" />
                <xs:element ref="adsml:Properties" minOccurs="0" />
            </xs:sequence>
        </xs:choice>
    </xs:sequence>
</xs:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
BusinessMessageDate adsml:BusinessMessageDate 0 (1)
RequestDenied adsml:RequestDenied (1) (1)
BookingInformation adsml-ma:BookingInformation 0 (1)
MaterialsPreparerParty adsml:MaterialsPreparerParty 0 (1)
DeliveringParty adsml:DeliveringParty 0 (1)
MaterialsRecipientParty adsml:MaterialsRecipientParty 0 (1)
OtherParty adsml:OtherParty 0 unbounded
Status adsml:Status 0 (1)
AdContent adsml-ma:AdContent 0 (1)
Properties adsml:Properties 0 (1)
