Definition Type: Element
Name: ForDeliveryTo
Namespace: http://www.adsml.org/adsmlmaterials/2.0
Type: adsml-ma:ForDeliveryToType
Containing Schema: AdsMLMaterials-2.0-PublicTypeLibrary-AS.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract

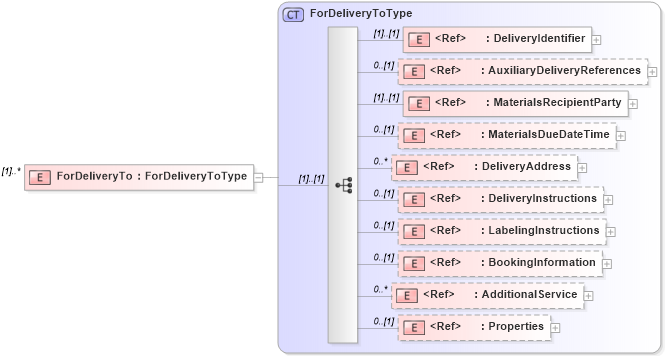

Collapse XSD Schema Diagram:
Drilldown into Properties in schema adsmltypelibrary-2_0-as_xsd Drilldown into AdditionalService in schema adsmltypelibrary-2_0-as_xsd Drilldown into BookingInformation in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into LabelingInstructions in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into DeliveryInstructions in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into DeliveryAddress in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into MaterialsDueDateTime in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into MaterialsRecipientParty in schema adsmltypelibrary-2_0-as_xsd Drilldown into AuxiliaryDeliveryReferences in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into DeliveryIdentifier in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into ForDeliveryToType in schema adsmlmaterials-2_0-publictypelibrary-as_xsdXSD Diagram of ForDeliveryTo in schema adsmlmaterials-2_0-publictypelibrary-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:element name="ForDeliveryTo" type="ForDeliveryToType" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DeliveryIdentifier adsml-ma:DeliveryIdentifier (1) (1)
AuxiliaryDeliveryReferences adsml-ma:AuxiliaryDeliveryReferences 0 (1)
MaterialsRecipientParty adsml:MaterialsRecipientParty (1) (1)
MaterialsDueDateTime adsml-ma:MaterialsDueDateTime 0 (1)
DeliveryAddress adsml-ma:DeliveryAddress 0 unbounded
DeliveryInstructions adsml-ma:DeliveryInstructions 0 (1)
LabelingInstructions adsml-ma:LabelingInstructions 0 (1)
BookingInformation adsml-ma:BookingInformation 0 (1)
AdditionalService adsml:AdditionalService 0 unbounded
Properties adsml:Properties 0 (1)
Collapse Derivation Tree:
