Documentation for AdsML
Definition Type: ComplexType
Name: ProductionDetailType.NewspaperMagazine
Namespace: http://www.adsml.org/adsmlbookings/2.0
Containing Schema: AdsMLBookings-2.0-PublicTypeLibrary-AS.xsd
Abstract
Collapse XSD Schema Diagram:

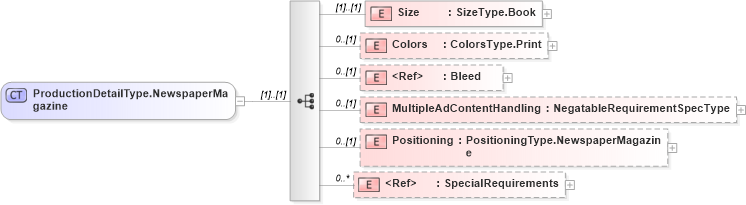

Drilldown into SpecialRequirements in schema adsmltypelibrary-2_0-as_xsd Drilldown into Positioning in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into MultipleAdContentHandling in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into Bleed in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into Colors in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into Size in schema adsmlbookings-2_0-publictypelibrary-as_xsdXSD Diagram of ProductionDetailType.NewspaperMagazine in schema adsmlbookings-2_0-publictypelibrary-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:complexType name="ProductionDetailType.NewspaperMagazine">
    <xs:sequence>
        <xs:element name="Size" type="SizeType.Book" />
        <xs:element name="Colors" type="ColorsType.Print" minOccurs="0" />
        <xs:element ref="Bleed" minOccurs="0" />
        <xs:element name="MultipleAdContentHandling" type="adsml:NegatableRequirementSpecType" minOccurs="0" />
        <xs:element name="Positioning" type="PositioningType.NewspaperMagazine" minOccurs="0" />
        <xs:element ref="adsml:SpecialRequirements" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Size adsml-bo:Size (1) (1)
Colors adsml-bo:Colors 0 (1)
Bleed adsml-bo:Bleed 0 (1)
MultipleAdContentHandling adsml-bo:MultipleAdContentHandling 0 (1)
Positioning adsml-bo:Positioning 0 (1)
SpecialRequirements adsml:SpecialRequirements 0 unbounded
Collapse Derivation Tree:
Collapse References:
adsml-bo:ProductionDetail.NewspaperMagazine
Documentation for AdsML
