Documentation for AdsML
Definition Type: Element
Name: Size
Namespace: http://www.adsml.org/adsmlbookings/2.0
Type: adsml-bo:SizeType.Book
Containing Schema: AdsMLBookings-2.0-PublicTypeLibrary-AS.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

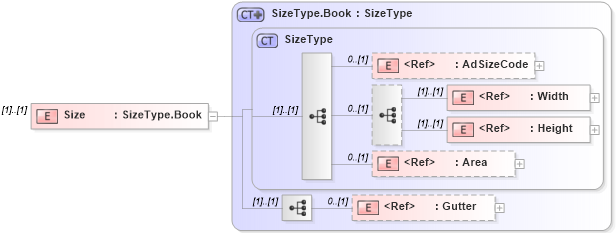

Collapse XSD Schema Diagram:
Drilldown into Gutter in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into Area in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into Height in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into Width in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into AdSizeCode in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into SizeType in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into SizeType.Book in schema adsmlbookings-2_0-publictypelibrary-as_xsdXSD Diagram of Size in schema adsmlbookings-2_0-publictypelibrary-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:element name="Size" type="SizeType.Book" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AdSizeCode adsml-bo:AdSizeCode 0 (1)
Width adsml-bo:Width (1) (1)
Height adsml-bo:Height (1) (1)
Area adsml-bo:Area 0 (1)
Gutter adsml-bo:Gutter 0 (1)
Collapse Derivation Tree:
