Documentation for AdsML
Definition Type: ComplexType
Name: SizeType.Book
Namespace: http://www.adsml.org/adsmlbookings/2.0
Type: adsml-bo:SizeType
Containing Schema: AdsMLBookings-2.0-PublicTypeLibrary-AS.xsd
Abstract

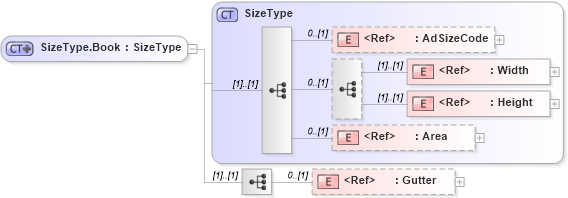

Collapse XSD Schema Diagram:
Drilldown into Gutter in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into Area in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into Height in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into Width in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into AdSizeCode in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into SizeType in schema adsmlbookings-2_0-publictypelibrary-as_xsdXSD Diagram of SizeType.Book in schema adsmlbookings-2_0-publictypelibrary-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:complexType name="SizeType.Book">
    <xs:complexContent>
        <xs:extension base="SizeType">
            <xs:sequence>
                <xs:element ref="Gutter" minOccurs="0" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AdSizeCode adsml-bo:AdSizeCode 0 (1)
Width adsml-bo:Width (1) (1)
Height adsml-bo:Height (1) (1)
Area adsml-bo:Area 0 (1)
Gutter adsml-bo:Gutter 0 (1)
Collapse Derivation Tree:
Collapse References:
adsml-bo:Size, adsml-bo:Size, adsml-pp:Size
