Documentation for AdsML
Definition Type: Element
Name: AdQuotation
Namespace: http://www.adsml.org/adsmlbookings/2.5
Containing Schema: AdsMLBookings-2.5-PublicTypeLibrary-AS.xsd
Abstract

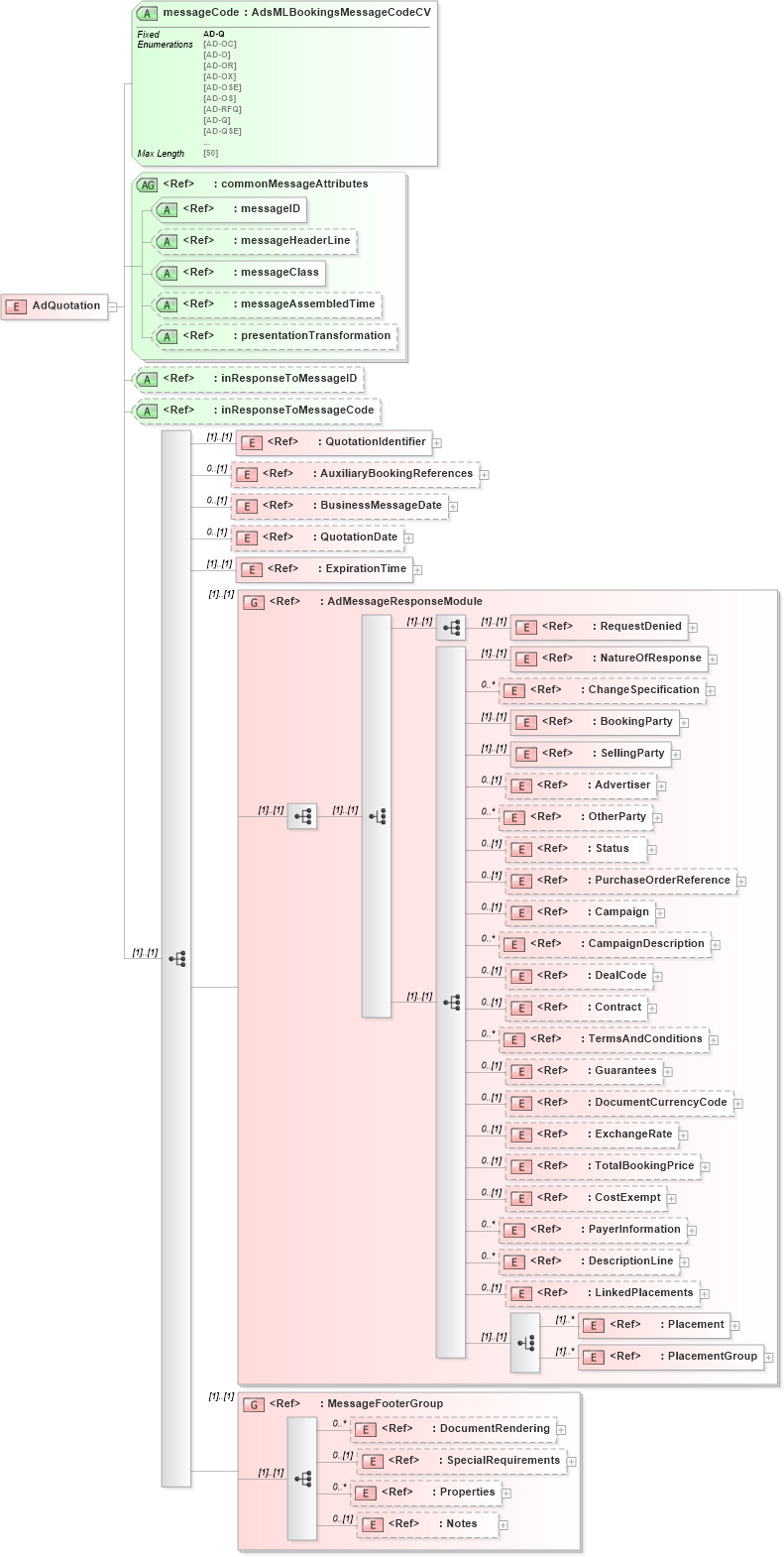

Collapse XSD Schema Diagram:
Drilldown into Notes in schema adsmltypelibrary-2_0-as_xsd Drilldown into Properties in schema adsmltypelibrary-2_0-as_xsd Drilldown into SpecialRequirements in schema adsmltypelibrary-2_0-as_xsd Drilldown into DocumentRendering in schema adsmltypelibrary-2_0-as_xsd Drilldown into MessageFooterGroup in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into PlacementGroup in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into Placement in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into LinkedPlacements in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into DescriptionLine in schema adsmltypelibrary-2_0-as_xsd Drilldown into PayerInformation in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into CostExempt in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into TotalBookingPrice in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into ExchangeRate in schema adsmltypelibrary-2_0-as_xsd Drilldown into DocumentCurrencyCode in schema adsmltypelibrary-2_0-as_xsd Drilldown into Guarantees in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into TermsAndConditions in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into Contract in schema adsmltypelibrary-2_0-as_xsd Drilldown into DealCode in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into CampaignDescription in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into Campaign in schema adsmltypelibrary-2_0-as_xsd Drilldown into PurchaseOrderReference in schema adsmltypelibrary-2_0-as_xsd Drilldown into Status in schema adsmltypelibrary-2_0-as_xsd Drilldown into OtherParty in schema adsmltypelibrary-2_0-as_xsd Drilldown into Advertiser in schema adsmltypelibrary-2_0-as_xsd Drilldown into SellingParty in schema adsmltypelibrary-2_0-as_xsd Drilldown into BookingParty in schema adsmltypelibrary-2_0-as_xsd Drilldown into ChangeSpecification in schema adsmltypelibrary-2_0-as_xsd Drilldown into NatureOfResponse in schema adsmltypelibrary-2_0-as_xsd Drilldown into RequestDenied in schema adsmltypelibrary-2_0-as_xsd Drilldown into AdMessageResponseModule in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into ExpirationTime in schema adsmltypelibrary-2_0-as_xsd Drilldown into QuotationDate in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into BusinessMessageDate in schema adsmltypelibrary-2_0-as_xsd Drilldown into AuxiliaryBookingReferences in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into QuotationIdentifier in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into inResponseToMessageCode in schema adsmltypelibrary-2_0-as_xsd Drilldown into inResponseToMessageID in schema adsmltypelibrary-2_0-as_xsd Drilldown into presentationTransformation in schema adsmltypelibrary-2_0-as_xsd Drilldown into messageAssembledTime in schema adsmltypelibrary-2_0-as_xsd Drilldown into messageClass in schema adsmltypelibrary-2_0-as_xsd Drilldown into messageHeaderLine in schema adsmltypelibrary-2_0-as_xsd Drilldown into messageID in schema adsmltypelibrary-2_0-as_xsd Drilldown into commonMessageAttributes in schema adsmltypelibrary-2_0-as_xsd Drilldown into messageCode in schema adsmlbookings-2_5-publictypelibrary-as_xsdXSD Diagram of AdQuotation in schema adsmlbookings-2_5-publictypelibrary-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:element name="AdQuotation">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="QuotationIdentifier" />
            <xs:element ref="AuxiliaryBookingReferences" minOccurs="0" />
            <xs:element ref="adsml:BusinessMessageDate" minOccurs="0" />
            <xs:element ref="QuotationDate" minOccurs="0" />
            <xs:element ref="adsml:ExpirationTime" />
            <xs:group ref="AdMessageResponseModule" />
            <xs:group ref="MessageFooterGroup" />
        </xs:sequence>
        <xs:attribute name="messageCode" type="AdsMLBookingsMessageCodeCV" use="required" fixed="AD-Q" />
        <xs:attributeGroup ref="adsml:commonMessageAttributes" />
        <xs:attribute ref="adsml:inResponseToMessageID" use="optional" />
        <xs:attribute ref="adsml:inResponseToMessageCode" use="optional" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
QuotationIdentifier adsml-bo:QuotationIdentifier (1) (1)
AuxiliaryBookingReferences adsml-bo:AuxiliaryBookingReferences 0 (1)
BusinessMessageDate adsml:BusinessMessageDate 0 (1)
QuotationDate adsml-bo:QuotationDate 0 (1)
ExpirationTime adsml:ExpirationTime (1) (1)
RequestDenied adsml:RequestDenied (1) (1)
NatureOfResponse adsml:NatureOfResponse (1) (1)
ChangeSpecification adsml:ChangeSpecification 0 unbounded
BookingParty adsml:BookingParty (1) (1)
SellingParty adsml:SellingParty (1) (1)
Advertiser adsml:Advertiser 0 (1)
OtherParty adsml:OtherParty 0 unbounded
Status adsml:Status 0 (1)
PurchaseOrderReference adsml:PurchaseOrderReference 0 (1)
Campaign adsml:Campaign 0 (1)
CampaignDescription adsml-bo:CampaignDescription 0 unbounded
DealCode adsml-bo:DealCode 0 (1)
Contract adsml:Contract 0 (1)
TermsAndConditions adsml-bo:TermsAndConditions 0 unbounded
Guarantees adsml-bo:Guarantees 0 (1)
DocumentCurrencyCode adsml:DocumentCurrencyCode 0 (1)
ExchangeRate adsml:ExchangeRate 0 (1)
TotalBookingPrice adsml-bo:TotalBookingPrice 0 (1)
CostExempt adsml-bo:CostExempt 0 (1)
PayerInformation adsml-bo:PayerInformation 0 unbounded
DescriptionLine adsml:DescriptionLine 0 unbounded
LinkedPlacements adsml-bo:LinkedPlacements 0 (1)
Placement adsml-bo:Placement (1) unbounded
PlacementGroup adsml-bo:PlacementGroup (1) unbounded
DocumentRendering adsml:DocumentRendering 0 unbounded
SpecialRequirements adsml:SpecialRequirements 0 (1)
Properties adsml:Properties 0 unbounded
Notes adsml:Notes 0 (1)
<xs:group> adsml-bo:AdMessageResponseModule (1) (1)
<xs:group> adsml-bo:MessageFooterGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
messageCode adsml-bo:messageCode Required
messageID adsml:messageID Required
messageHeaderLine adsml:messageHeaderLine (Optional)
messageClass adsml:messageClass Required
messageAssembledTime adsml:messageAssembledTime Optional
presentationTransformation adsml:presentationTransformation Optional
inResponseToMessageID adsml:inResponseToMessageID Optional
inResponseToMessageCode adsml:inResponseToMessageCode Optional
