Documentation for AdsML
Definition Type: Element
Name: BookingInformation.Insert
Namespace: http://www.adsml.org/adsmlfinancials/1.5
Type: adsml-fi:BookingInformationType.Base
Containing Schema: AdsMLFinancials-1.5-PublicTypeLibrary-AS.xsd
Abstract

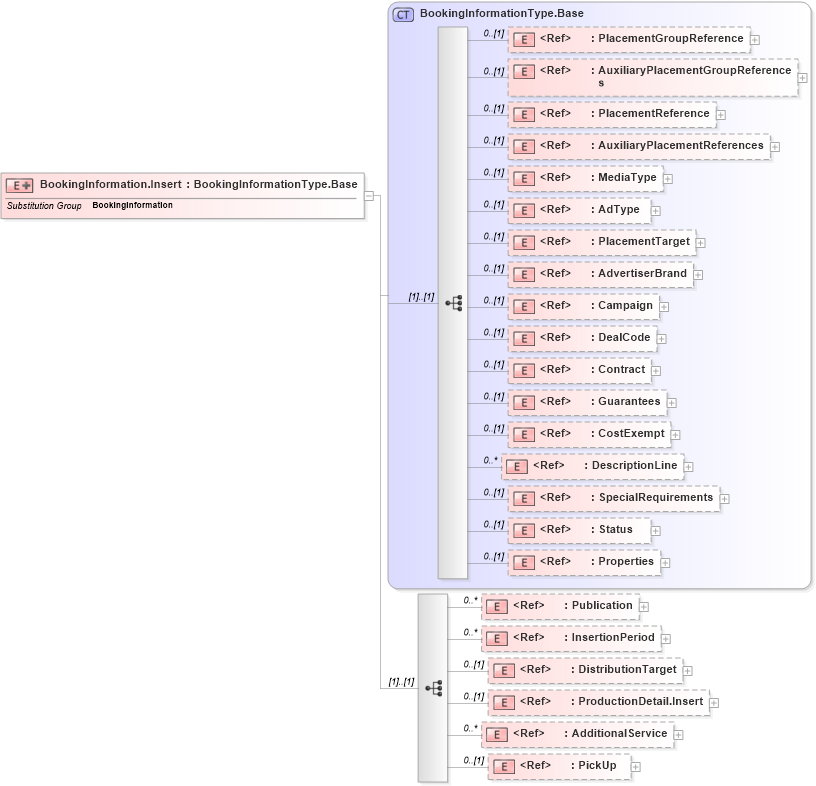

Collapse XSD Schema Diagram:
Drilldown into PickUp in schema adsmlfinancials-1_5-publictypelibrary-as_xsd Drilldown into AdditionalService in schema adsmltypelibrary-2_0-as_xsd Drilldown into ProductionDetail.Insert in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into DistributionTarget in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into InsertionPeriod in schema adsmlfinancials-1_5-publictypelibrary-as_xsd Drilldown into Publication in schema adsmlfinancials-1_5-publictypelibrary-as_xsd Drilldown into Properties in schema adsmltypelibrary-2_0-as_xsd Drilldown into Status in schema adsmltypelibrary-2_0-as_xsd Drilldown into SpecialRequirements in schema adsmltypelibrary-2_0-as_xsd Drilldown into DescriptionLine in schema adsmltypelibrary-2_0-as_xsd Drilldown into CostExempt in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into Guarantees in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into Contract in schema adsmltypelibrary-2_0-as_xsd Drilldown into DealCode in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into Campaign in schema adsmltypelibrary-2_0-as_xsd Drilldown into AdvertiserBrand in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into PlacementTarget in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into AdType in schema adsmltypelibrary-2_0-as_xsd Drilldown into MediaType in schema adsmltypelibrary-2_0-as_xsd Drilldown into AuxiliaryPlacementReferences in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into PlacementReference in schema adsmlfinancials-1_5-publictypelibrary-as_xsd Drilldown into AuxiliaryPlacementGroupReferences in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into PlacementGroupReference in schema adsmlfinancials-1_5-publictypelibrary-as_xsd Drilldown into BookingInformationType.Base in schema adsmlfinancials-1_5-publictypelibrary-as_xsdXSD Diagram of BookingInformation.Insert in schema adsmlfinancials-1_5-publictypelibrary-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:element name="BookingInformation.Insert" substitutionGroup="BookingInformation">
    <xs:complexType>
        <xs:complexContent>
            <xs:extension base="BookingInformationType.Base">
                <xs:sequence>
                    <xs:element ref="Publication" minOccurs="0" maxOccurs="unbounded" />
                    <xs:element ref="InsertionPeriod" minOccurs="0" maxOccurs="unbounded" />
                    <xs:element ref="adsml-bo:DistributionTarget" minOccurs="0" />
                    <xs:element ref="adsml-bo:ProductionDetail.Insert" minOccurs="0" />
                    <xs:element ref="adsml:AdditionalService" minOccurs="0" maxOccurs="unbounded" />
                    <xs:element ref="PickUp" minOccurs="0" />
                </xs:sequence>
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PlacementGroupReference adsml-fi:PlacementGroupReference 0 (1)
AuxiliaryPlacementGroupReferences adsml-bo:AuxiliaryPlacementGroupReferences 0 (1)
PlacementReference adsml-fi:PlacementReference 0 (1)
AuxiliaryPlacementReferences adsml-bo:AuxiliaryPlacementReferences 0 (1)
MediaType adsml:MediaType 0 (1)
AdType adsml:AdType 0 (1)
PlacementTarget adsml-bo:PlacementTarget 0 (1)
AdvertiserBrand adsml-bo:AdvertiserBrand 0 (1)
Campaign adsml:Campaign 0 (1)
DealCode adsml-bo:DealCode 0 (1)
Contract adsml:Contract 0 (1)
Guarantees adsml-bo:Guarantees 0 (1)
CostExempt adsml-bo:CostExempt 0 (1)
DescriptionLine adsml:DescriptionLine 0 unbounded
SpecialRequirements adsml:SpecialRequirements 0 (1)
Status adsml:Status 0 (1)
Properties adsml:Properties 0 (1)
Publication adsml-fi:Publication 0 unbounded
InsertionPeriod adsml-fi:InsertionPeriod 0 unbounded
DistributionTarget adsml-bo:DistributionTarget 0 (1)
ProductionDetail.Insert adsml-bo:ProductionDetail.Insert 0 (1)
AdditionalService adsml:AdditionalService 0 unbounded
PickUp adsml-fi:PickUp 0 (1)
Collapse Derivation Tree:
Collapse References:
adsml-fi:BookingInformation
